Relay-Horn (On PCB) (Standard) Connector End View (D826)

Harness-Family: PDC_Underhood

Color: NA

Gender: FEMALE

Part Number: NON-SERVICEABLE-PCB

Part Description: Not Available

Connector No: D826

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: Relay-Horn (on Pcb) Connector End View (Standard)

Courtesy of CHRYSLER

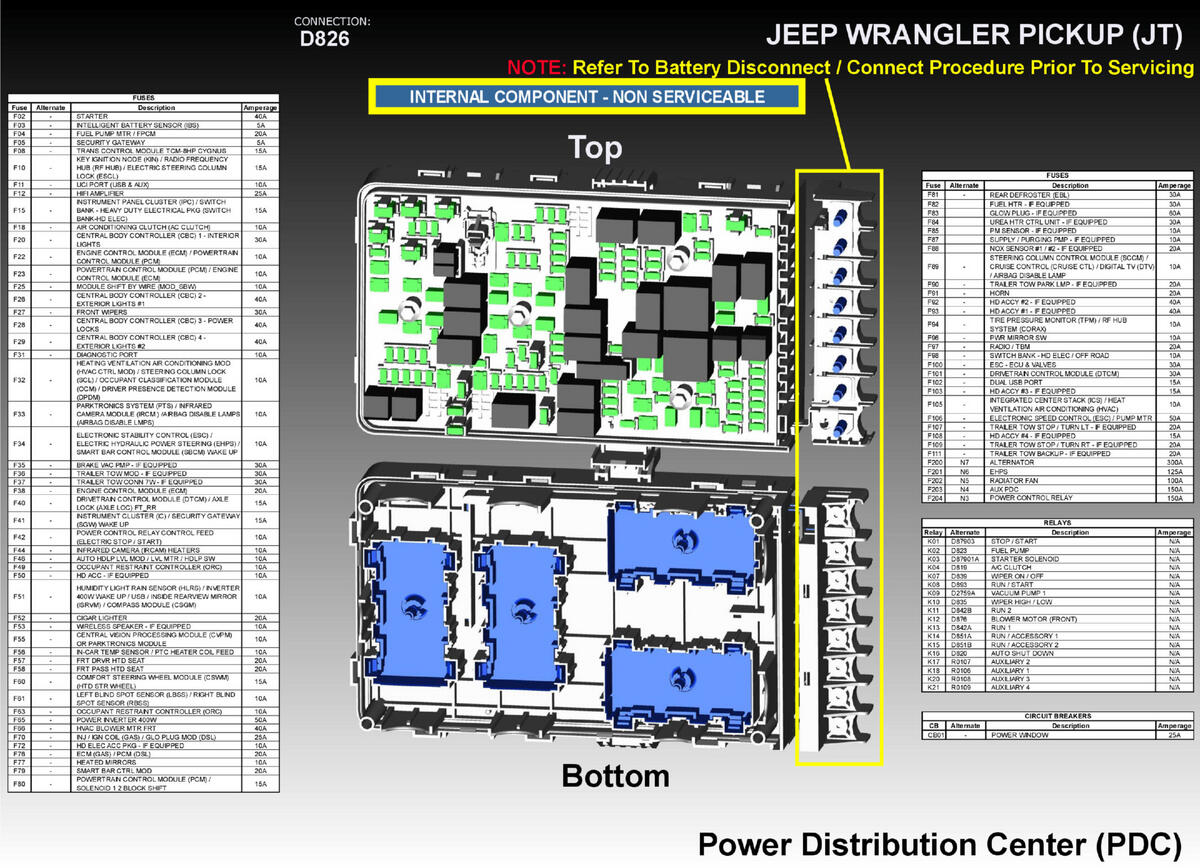

Fig 2: Relay-Horn (on Pcb) Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
30	A0	INTERNAL	NA	FUSED B(+)	N/A
85	Z906	INTERNAL	NA	GROUND	N/A
86	X4	INTERNAL	NA	HORN RELAY CONTROL	N/A
87	X21	INTERNAL	NA	FUSED HORN CONTROL OUTPUT	N/A
