Relay-Auxiliary 4 (Standard) Connector End View (R0109)

Harness-Family: PDC_Underhood

Color: NA

Gender: MALE

Part Number: RELAY_MICRO

Part Description: Not Available

Connector No: R0109

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 5

Fig 1: Relay-Auxiliary 4 Connector End View (Standard)

Courtesy of CHRYSLER

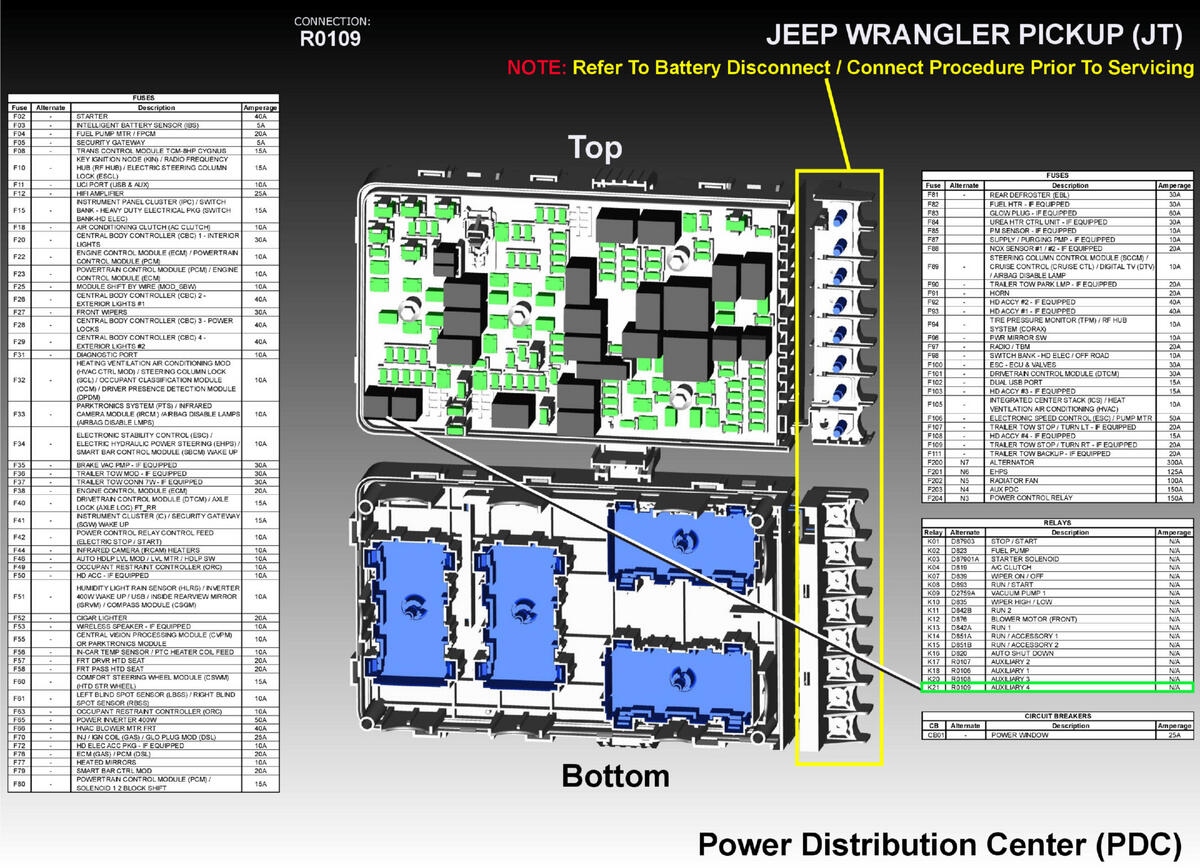

Fig 2: Relay-Auxiliary 4 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
30	A0	INTERNAL	NA	FUSED B(+)	N/A
85	A0	INTERNAL	NA	FUSED B(+)	N/A
86	P823	INTERNAL	NA	AUX 4 RELAY CTRL SIGNAL	N/A
87	F614	INTERNAL	NA	ACCESSORY RELAY 4 OUTPUT	N/A
