Receptacle-Trailer Tow (Standard) Connector End View (D6644A)

Harness-Family: Chassis_RT

Color: BLACK

Gender: FEMALE

Part Number: 13626146_12191649

Part Description: Not Available

Connector No: D6644A

Option: Standard

Repair Kit Part Number: 68068628AA

Cavity Count: 7

Fig 1: Receptacle-Trailer Tow Connector End View (Standard)
GCWD1011248Courtesy of CHRYSLER

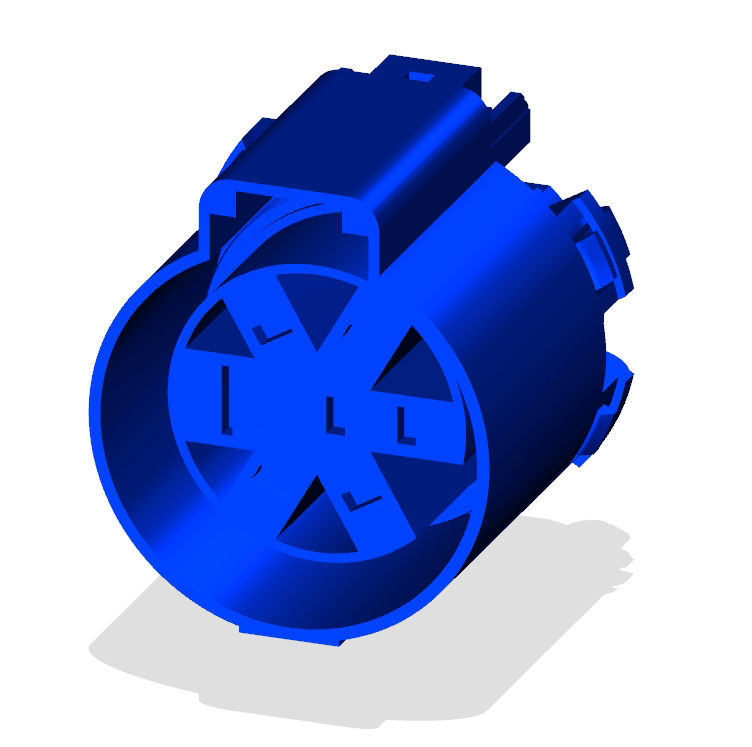

Fig 2: Receptacle-Trailer Tow Isometric View (Standard)
GCWD1014676Courtesy of CHRYSLER
Fig 3: Receptacle-Trailer Tow Wire Insertion View (Standard)
GCWD1010635Courtesy of CHRYSLER
Fig 4: Receptacle-Trailer Tow Component Location View (Standard)
GCWD1318240Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
A L111 WH/OG 1.0 TRAILER TOW BACKUP LAMP FEED N/A
B Z925 BK/GY 2.0 GROUND N/A
C B40 DG 2.0 ELECTRIC BRAKE FEED N/A
D L674 GN 1.0 RIGHT REAR STOP/TURN SIGNAL FEED N/A
E A100 RD/VT 2.0 FUSED B(+) N/A
F L76 WH/BN 1.0 TRAILER TOW RELAY OUTPUT N/A
G L673 YE 1.0 LEFT REAR STOP/TURN SIGNAL FEED N/A
