Radio C9 (Standard) Connector End View (D2784I)

Harness-Family: Antenna_IP

Color: VIOLET

Gender: FEMALE

Part Number: 1438919-8

Part Description: Not Available

Connector No: D2784I

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: Radio C9 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Radio C9 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Radio C9 Wire Insertion View (Standard)

Courtesy of CHRYSLER

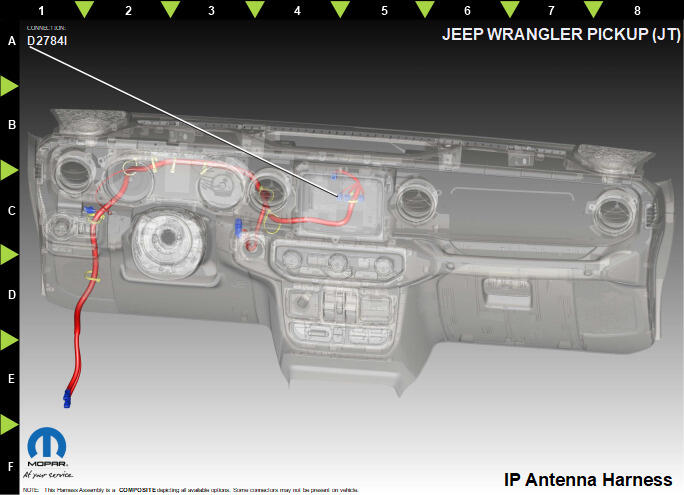

Fig 4: Radio C9 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	J240	BK	0.20	CABLE 4G CELL	N/A
