Radio C8 (Standard) Connector End View (D2784H)

Harness-Family: Antenna_IP

Color: GRAY

Gender: FEMALE

Part Number: 1924792-7

Part Description: Not Available

Connector No: D2784H

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

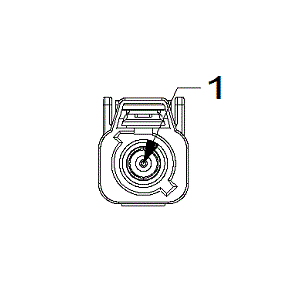

Fig 1: Radio C8 Connector End View (Standard)

Courtesy of CHRYSLER

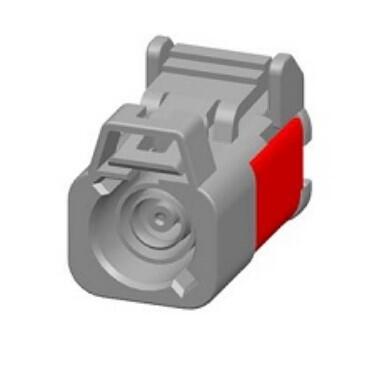

Fig 2: Radio C8 Isometric View (Standard)

Courtesy of CHRYSLER

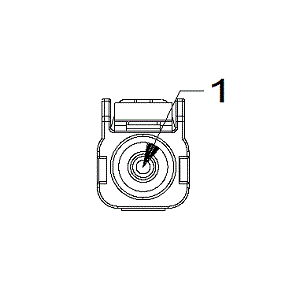

Fig 3: Radio C8 Wire Insertion View (Standard)

Courtesy of CHRYSLER

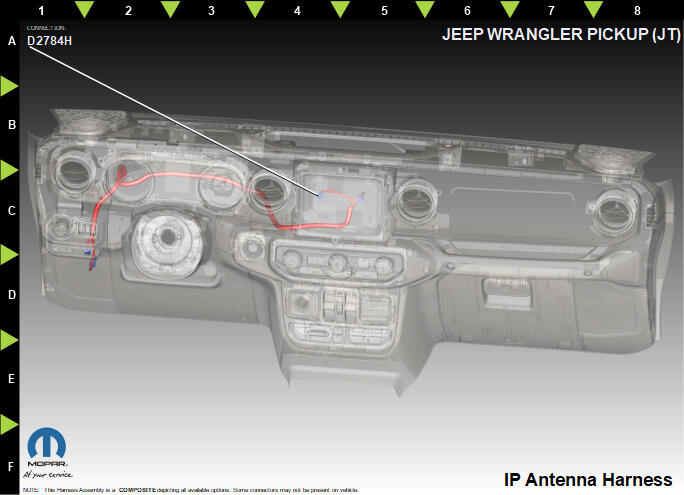

Fig 4: Radio C8 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D142	BK/BK	0.20	DAB ANTENNA SIGNAL	N/A
1	D142	BK	0.82	DAB ANTENNA SIGNAL	N/A
