Radio C7 (Standard) Connector End View (D2784G)

Harness-Family: Antenna_IP

Color: VIOLET

Gender: FEMALE

Part Number: 1438919-4

Part Description: Not Available

Connector No: D2784G

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

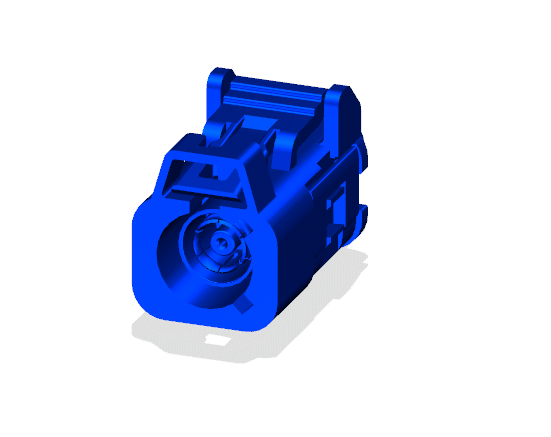

Fig 1: Radio C7 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Radio C7 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Radio C7 Wire Insertion View (Standard)

Courtesy of CHRYSLER

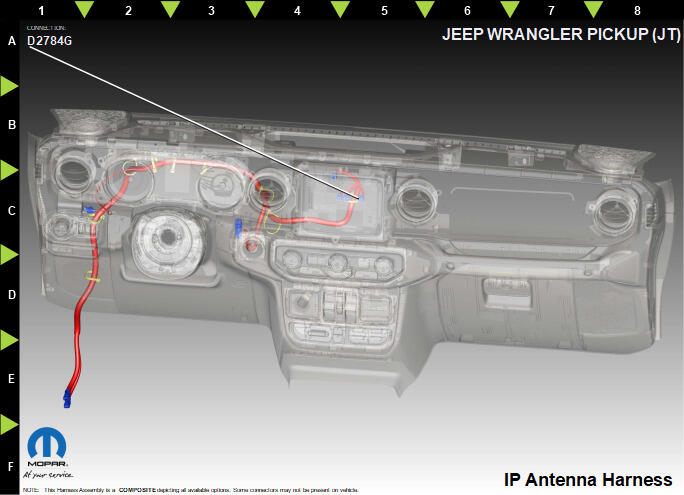

Fig 4: Radio C7 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D7	BK	0.20	CELLULAR ANTENNA SIGNAL	N/A
