Radio C6 (Standard) Connector End View (D2784F)

Harness-Family: Antenna_IP

Color: BLUE

Gender: FEMALE

Part Number: 2-2138895-1

Part Description: Not Available

Connector No: D2784F

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: Radio C6 Connector End View (Standard)
GCWD1220332Courtesy of CHRYSLER
Fig 2: Radio C6 Isometric View (Standard)
GCWD1318679Courtesy of CHRYSLER
Fig 3: Radio C6 Wire Insertion View (Standard)
GCWD1006869Courtesy of CHRYSLER

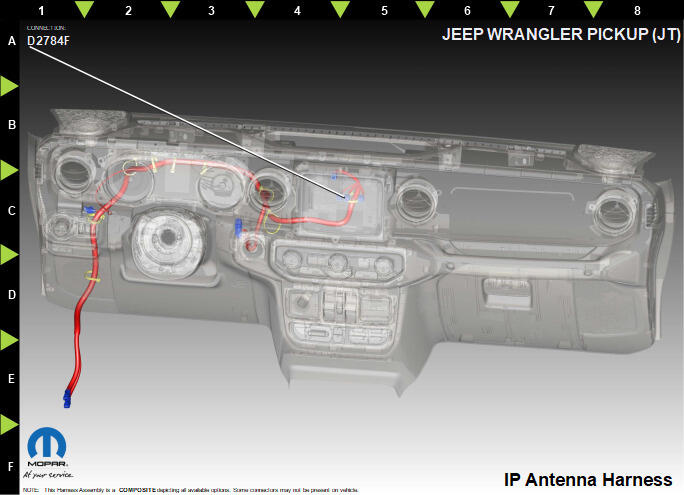

Fig 4: Radio C6 Component Location View (Standard)
GCWD1318653Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D106 BK 0.20 SATELLITE RADIO ANTENNA SIGNAL N/A
