Radio C5 (Standard) Connector End View (D2784E)

Harness-Family: Antenna_IP

Color: BLUE

Gender: FEMALE

Part Number: 2-2138895-1

Part Description: Not Available

Connector No: D2784E

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

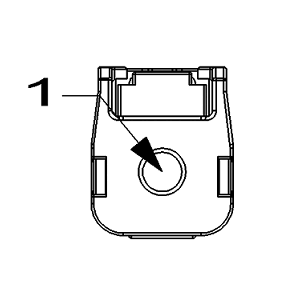

Fig 1: Radio C5 Connector End View (Standard)

Courtesy of CHRYSLER

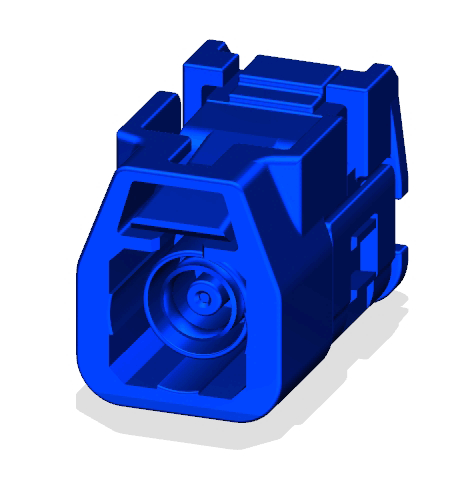

Fig 2: Radio C5 Isometric View (Standard)

Courtesy of CHRYSLER

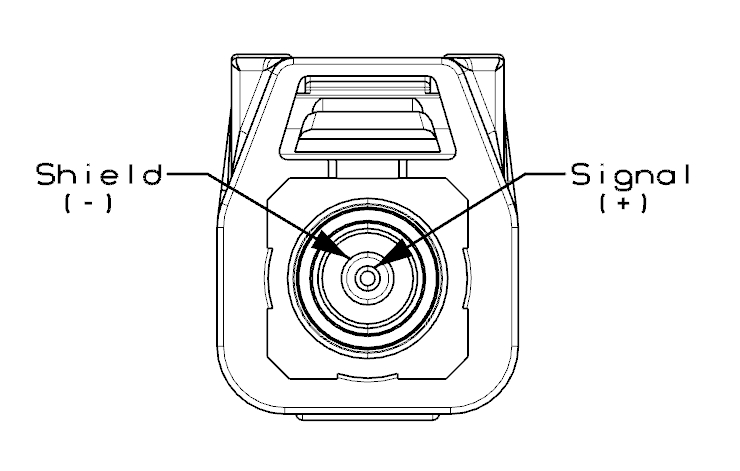

Fig 3: Radio C5 Wire Insertion View (Standard)

Courtesy of CHRYSLER

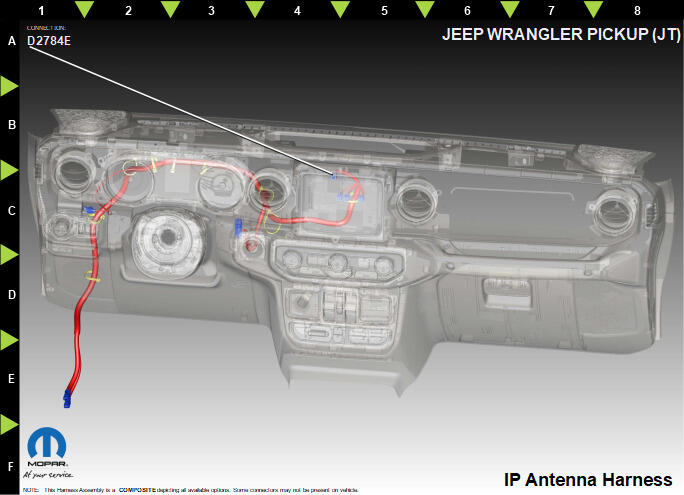

Fig 4: Radio C5 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D8	BK	0.20	GPS ANTENNA SIGNAL	N/A
1	D8	BK/BK	0.20	GPS ANTENNA SIGNAL	N/A
