Capacitor-Ignition 2 (Standard) Connector End View (D8101A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 184116-2

Part Description: CONNECTOR -PLUG ASSY 2 P -1 CIR (H KEY)

Connector No: D8101A

Option: Standard

Repair Kit Part Number: 68040449AB

Cavity Count: 2

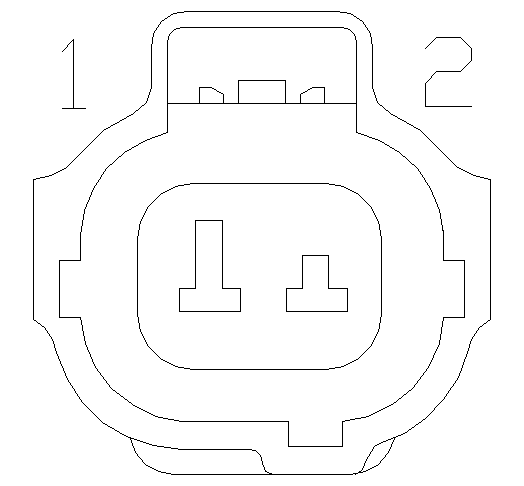

Fig 1: Capacitor-Ignition 2 Connector End View (Standard)

Courtesy of CHRYSLER

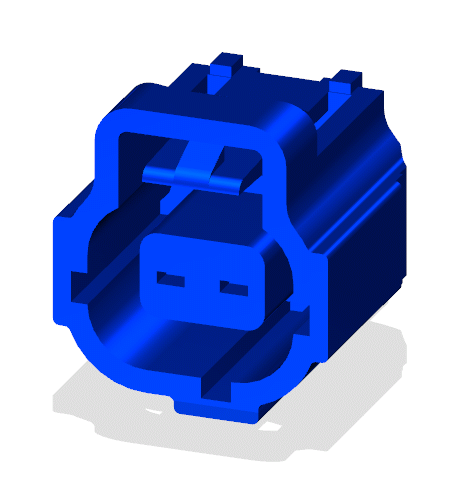

Fig 2: Capacitor-Ignition 2 Isometric View (Standard)

Courtesy of CHRYSLER

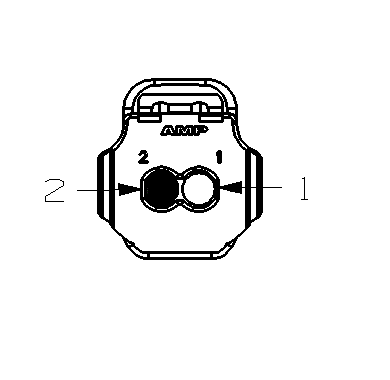

Fig 3: Capacitor-Ignition 2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

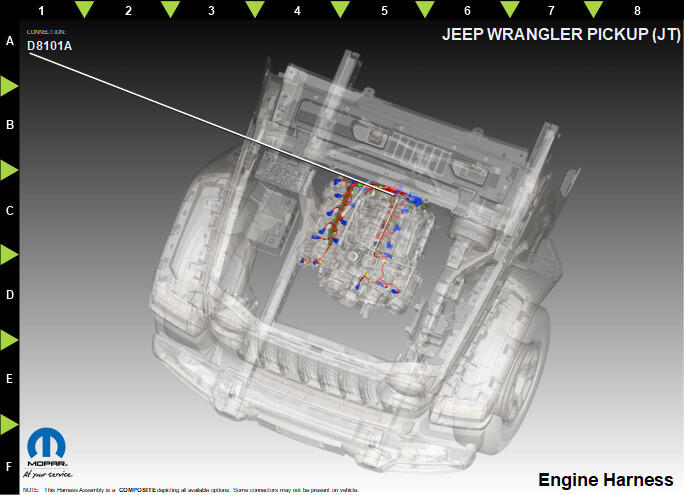

Fig 4: Capacitor-Ignition 2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F343	BN/WH	1.0	FUSED ASD RELAY OUTPUT	N/A
2	N0		NA	NO CONNECT	N/A
