Camera-Rear Video (Standard) Connector End View (D6742A)

Harness-Family: Tailgate

Color: VIOLET

Gender: FEMALE

Part Number: 3FA1ENHRJ-C01ER

Part Description: Not Available

Connector No: D6742A

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 1

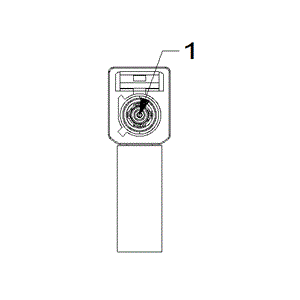

Fig 1: Camera-Rear Video Connector End View (Standard)

Courtesy of CHRYSLER

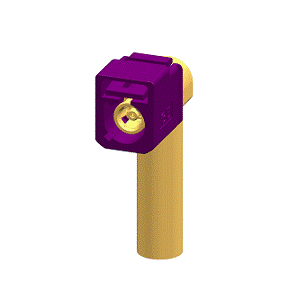

Fig 2: Camera-Rear Video Isometric View (Standard)

Courtesy of CHRYSLER

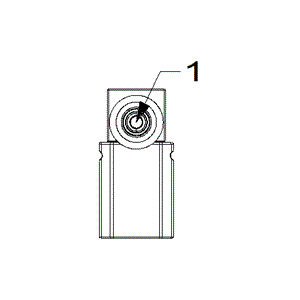

Fig 3: Camera-Rear Video Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Camera-Rear Video Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	J220	BK	0.20	COAX CABLE A LVDS CAMERA REAR SIG	N/A
