Camera-Rear (Standard) Connector End View (D3130A)

Harness-Family: Tailgate

Color: BLACK

Gender: FEMALE

Part Number: 3FA1ENARJ-C01ER

Part Description: Not Available

Connector No: D3130A

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 1

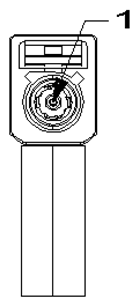

Fig 1: Camera-Rear Connector End View (Standard)
GCWD1251308Courtesy of CHRYSLER

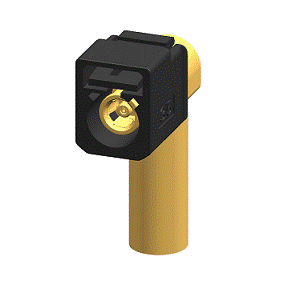

Fig 2: Camera-Rear Isometric View (Standard)
GCWD1308561Courtesy of CHRYSLER

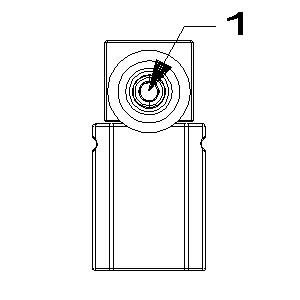

Fig 3: Camera-Rear Wire Insertion View (Standard)
GCWD1308749Courtesy of CHRYSLER

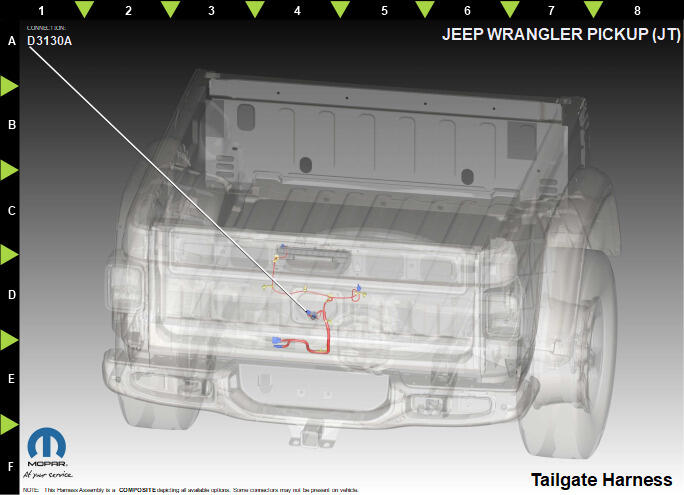

Fig 4: Camera-Rear Component Location View (Standard)
GCWD1318786Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 J220 BK 0.82 COAX CABLE A LVDS CAMERA REAR SIG N/A
