Assembly-Video Camera-Front (Standard) Connector End View (D2953A)

Harness-Family: Jumper_Camera_Front

Color: BLACK

Gender: FEMALE

Part Number: 3FA1ENARJ-C01ER

Part Description: Not Available

Connector No: D2953A

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 1

Fig 1: Assembly-Video Camera-Front Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Assembly-Video Camera-Front Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Assembly-Video Camera-Front Wire Insertion View (Standard)

Courtesy of CHRYSLER

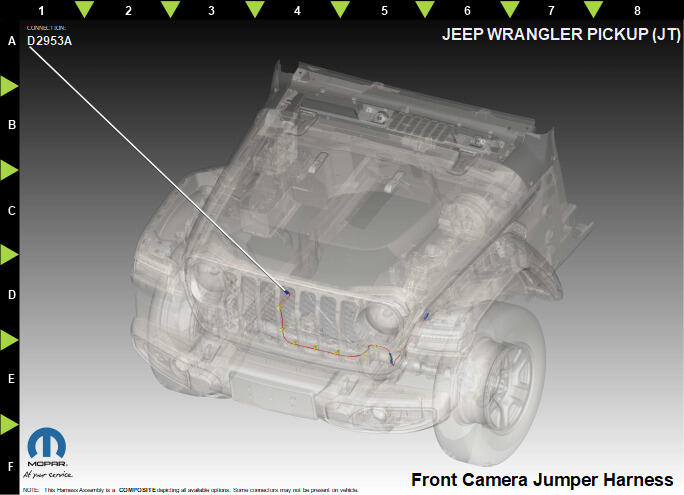

Fig 4: Assembly-Video Camera-Front Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	J222	BK	0.20	COAX CABLE A LVDS CAMERA FRONT SIG	N/A
