Assembly-Shift Motor/Mode Sensor (Standard) Connector End View (D6648A)

Harness-Family: Transmission

Color: BLACK

Gender: FEMALE

Part Number: 872-585-531

Part Description: Not Available

Connector No: D6648A

Option: Standard

Repair Kit Part Number: 68490924AA

Cavity Count: 8

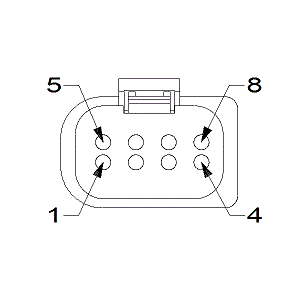

Fig 1: Assembly-Shift Motor/mode Sensor Connector End View (Standard)

Courtesy of CHRYSLER

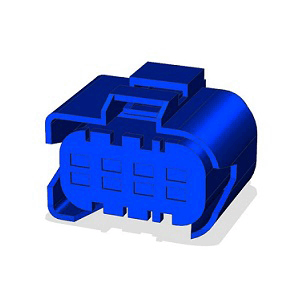

Fig 2: Assembly-Shift Motor/mode Sensor Isometric View (Standard)

Courtesy of CHRYSLER

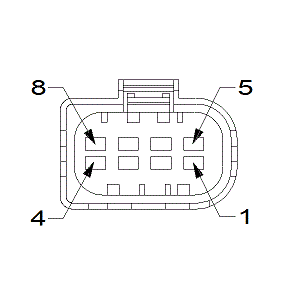

Fig 3: Assembly-Shift Motor/mode Sensor Wire Insertion View (Standard)

Courtesy of CHRYSLER

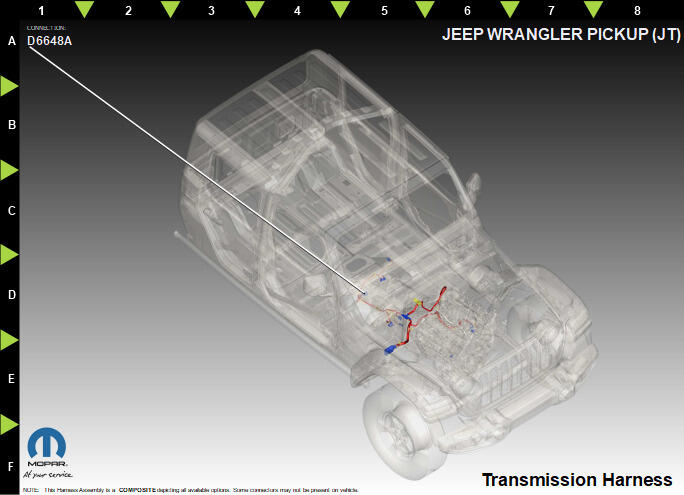

Fig 4: Assembly-Shift Motor/mode Sensor Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	T307	YE/DB	0.35	TRANSFER CASE ENCODER SIG 0	N/A
2	T308	YE/BU	0.35	TRANSFER CASE ENCODER SIG 1	N/A
3	K504	BN	0.35	DRIVETRAIN 5 VOLT SUPPLY	N/A
4	K594	BN/GN	0.35	DRIVETRAIN SENSOR RETURN	N/A
5	T315	YE/BN	2.5	SHIFT MOTOR CONTROL A	N/A
6	T301	DG/YE	0.75	SWITCHED BATTERY SOLENOID SUPPLY	N/A
7	T317	YE/BG	0.75	STEP MOTOR CONTROL D	N/A
8	T316	YE/GY	2.5	SHIFT MOTOR CONTROL B	N/A
