Assembly-Shift Lever C1 (Standard) Connector End View (D2734A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 34900-6140

Part Description: Not Available

Connector No: D2734A

Option: Standard

Repair Kit Part Number: 68496344AA

Cavity Count: 6

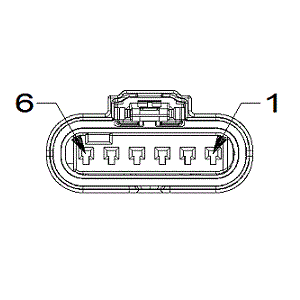

Fig 1: Assembly-Shift Lever C1 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Assembly-Shift Lever C1 Isometric View (Standard)

Courtesy of CHRYSLER

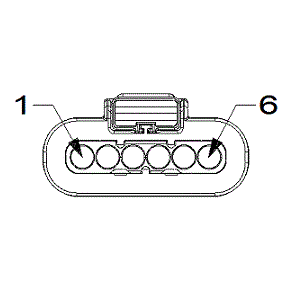

Fig 3: Assembly-Shift Lever C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Assembly-Shift Lever C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A195	RD/YE	0.50	FUSED B(+)	N/A
2	D441	WH/OG	0.35	DATA BUS(+) ESHIFT	N/A
3	D440	WH/BN	0.35	DATA BUS(-) ESHIFT	N/A
4	D429	GY	0.35	CAN C (+)	N/A
5	D430	YE	0.35	CAN C (-)	N/A
6	Z912	BK/OG	0.50	GROUND	N/A
