Assembly-Power Distribution Center-Auxiliary C3 (Standard) Connector End View (D2620C)

Harness-Family: Dash

Color: NA

Gender: FEMALE

Part Number: R8637

Part Description: Not Available

Connector No: D2620C

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: 1

Fig 1: Assembly-Power Distribution Center-Auxiliary C3 Connector End View (Standard)
GCWD1007883Courtesy of CHRYSLER
Fig 2: Assembly-Power Distribution Center-Auxiliary C3 Isometric View (Standard)
GCWD1007520Courtesy of CHRYSLER

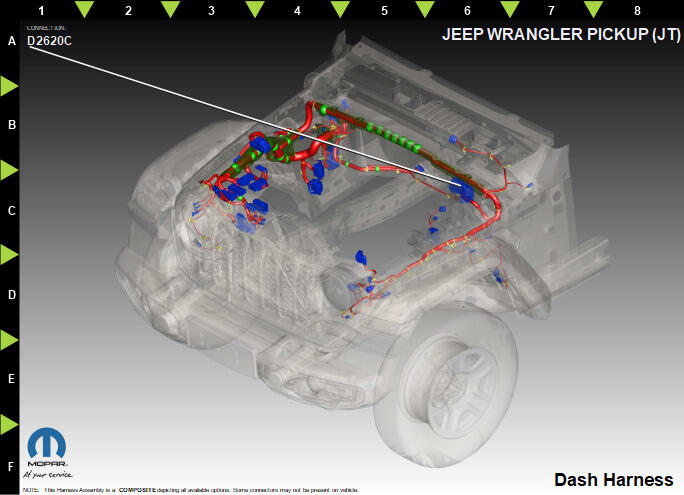

Fig 3: Assembly-Power Distribution Center-Auxiliary C3 Component Location View (Standard)
GCWD1318260Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A3 RD 20.0 FUSED B(+) N/A
