Assembly-Power Distribution Center-Auxiliary C1 (Standard) Connector End View (D2620A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 8001495702A_8003495802A_80091010A_8001495602

Part Description: Not Available

Connector No: D2620A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 9

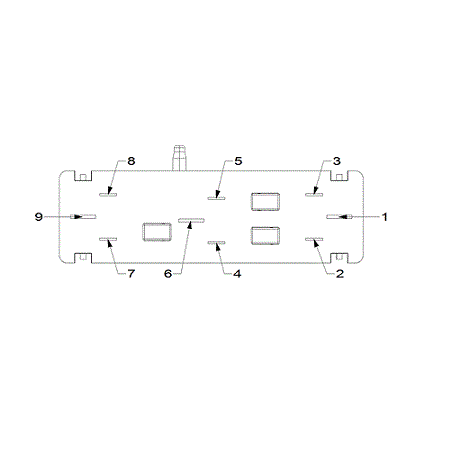

Fig 1: Assembly-Power Distribution Center-Auxiliary C1 Connector End View (Standard)

Courtesy of CHRYSLER

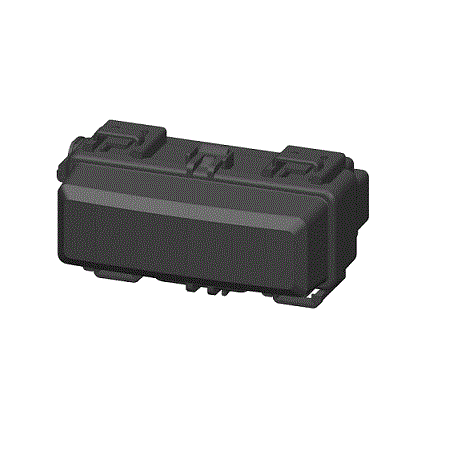

Fig 2: Assembly-Power Distribution Center-Auxiliary C1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Assembly-Power Distribution Center-Auxiliary C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

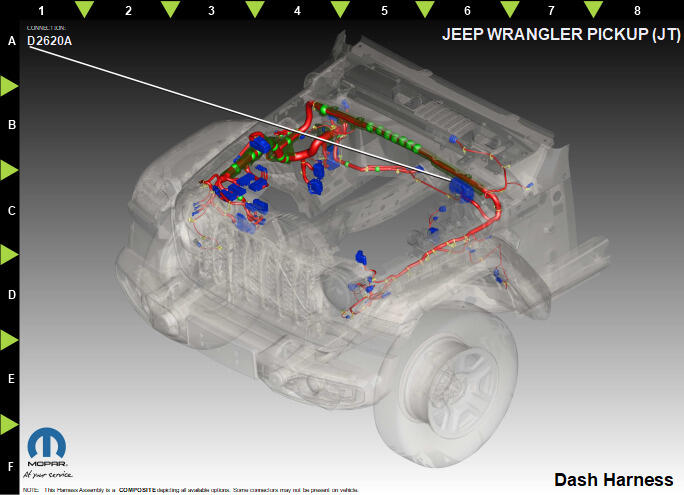

Fig 4: Assembly-Power Distribution Center-Auxiliary C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F285	PK/BN	5.0	FUSED CABIN HEATER 1 SUPPLY	N/A
2	F925	PK/YE	0.50	FUSED IGNITION RUN CONTROL OUTPUT	N/A
3	K360	GY/BN	0.50	PTC 1 RELAY CONTROL	N/A
4	F925	PK/YE	0.50	FUSED IGNITION RUN CONTROL OUTPUT	N/A
5	K361	WH/BN	0.50	PTC 2 RELAY CONTROL	N/A
6	F286	PK/OG	5.0	FUSED CABIN HEATER 2 SUPPLY	N/A
7	F925	PK/YE	0.50	FUSED IGNITION RUN CONTROL OUTPUT	N/A
8	K363	OG/BN	0.50	PTC 3 RELAY CONTROL	N/A
9	F288	PK/VT	5.0	FUSED CABIN HEATER 3 SUPPLY	N/A
