Assembly-Power Distribution Center N2 (3.6L Gas) Connector End View (D6630F)

Harness-Family: Transmission

Color: NA

Gender: FEMALE

Part Number: 33276565

Part Description: Not Available

Connector No: D6630F

Option: 3.6L GAS

Repair Kit Part Number: Not Serviceable

Cavity Count: 1

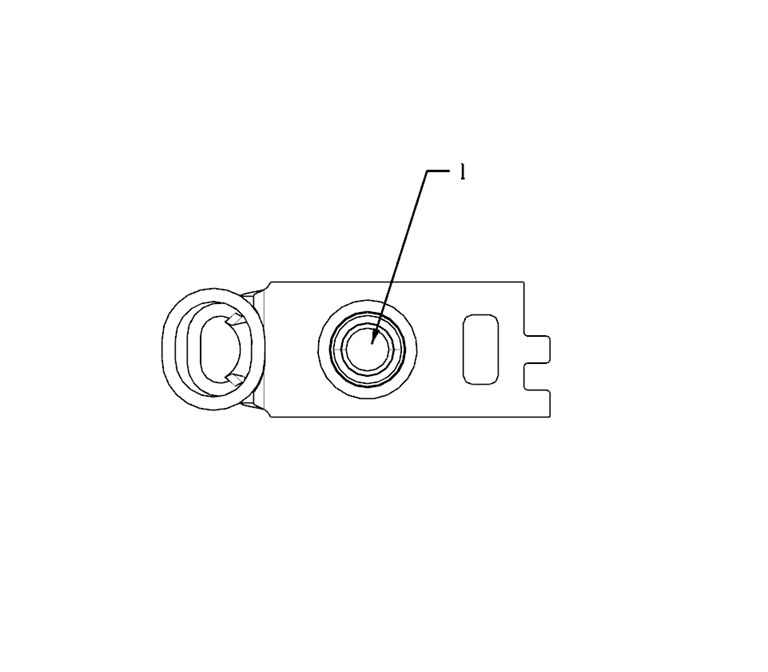

Fig 1: Assembly-Power Distribution Center N2 Connector End View (3.6L GAS)
GCWD1238661Courtesy of CHRYSLER

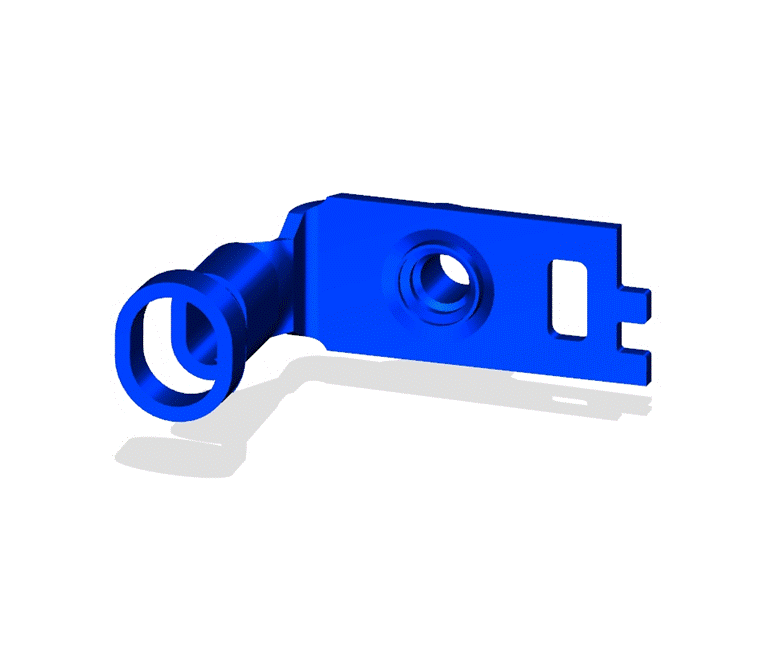

Fig 2: Assembly-Power Distribution Center N2 Isometric View (3.6L GAS)
GCWD1318336Courtesy of CHRYSLER
Fig 3: Assembly-Power Distribution Center N2 Component Location View (3.6L GAS)
GCWD1318292Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A1 RD 35.0 FUSED B(+) N/A
