Assembly-Power Distribution Center N1 (Standard) Connector End View (D6630E)

Harness-Family: Battery

Color: NA

Gender: FEMALE

Part Number: 33276564

Part Description: Not Available

Connector No: D6630E

Option: Standard

Repair Kit Part Number: Not Serviceable

Cavity Count: 1

Fig 1: Assembly-Power Distribution Center N1 Connector End View (Standard)
GCWD1007624Courtesy of CHRYSLER
Fig 2: Assembly-Power Distribution Center N1 Isometric View (Standard)
GCWD1006838Courtesy of CHRYSLER

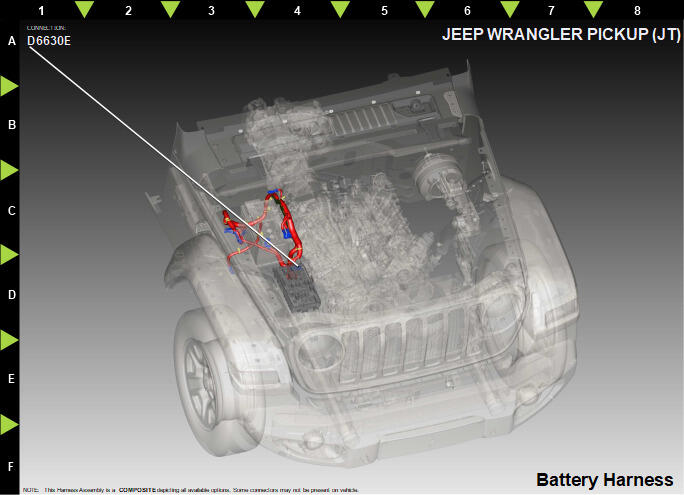

Fig 3: Assembly-Power Distribution Center N1 Component Location View (Standard)
GCWD1318867Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A0 RD 20.0 FUSED B(+) N/A
