Assembly-Fuel Heater/WIF Sensor C1 (Standard) Connector End View (D2881A)

Harness-Family: Chassis_RT

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 54200410

Part Description: Not Available

Connector No: D2881A

Option: Standard

Repair Kit Part Number: 05013978AA

Cavity Count: 4

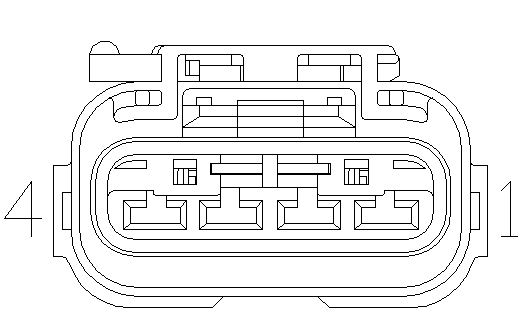

Fig 1: Assembly-Fuel Heater/wif Sensor C1 Connector End View (Standard)

Courtesy of CHRYSLER

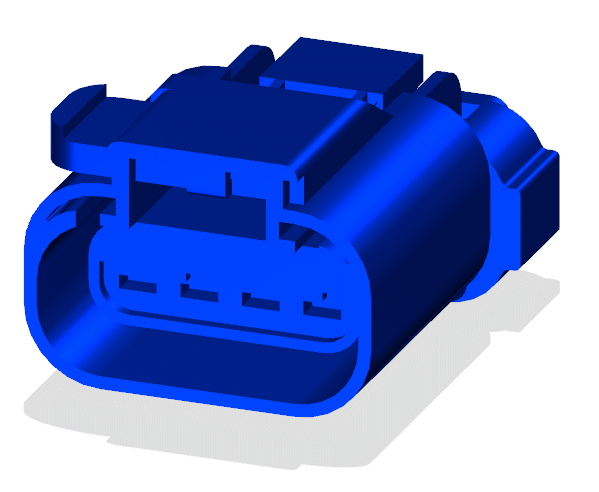

Fig 2: Assembly-Fuel Heater/wif Sensor C1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Assembly-Fuel Heater/wif Sensor C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Assembly-Fuel Heater/wif Sensor C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F326	PK/DG	2.5	DIESEL FUEL HEATER SUPPLY	N/A
2	G123	VT/GN	0.75	WIF SENSOR 1 SIGNAL	N/A
3	K923	BN/WH	0.75	WATER IN FUEL SENSOR GROUND	N/A
4	Z906	BK	2.5	GROUND	N/A
