Assembly-EGR Valve (3.6L Gas) Connector End View (D16A)

Harness-Family: Powertrain

Color: BLACK

Gender: FEMALE

Part Number: 805-123-551

Part Description: Not Available

Connector No: D16A

Option: 3.6L GAS

Repair Kit Part Number: 68364257AA

Cavity Count: 5

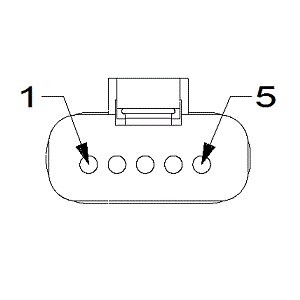

Fig 1: Assembly-Egr Valve Connector End View (3.6L GAS)

Courtesy of CHRYSLER

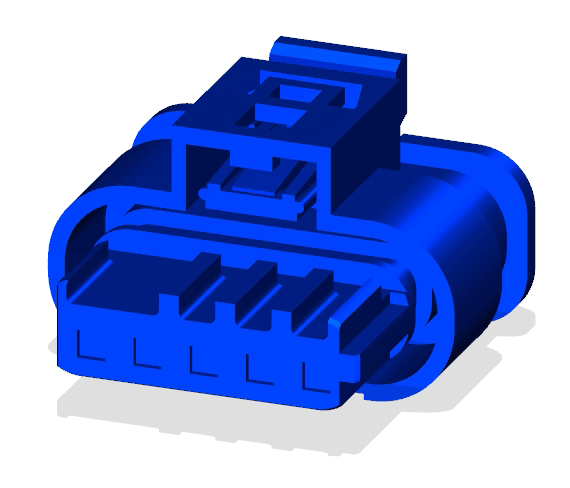

Fig 2: Assembly-Egr Valve Isometric View (3.6L GAS)

Courtesy of CHRYSLER

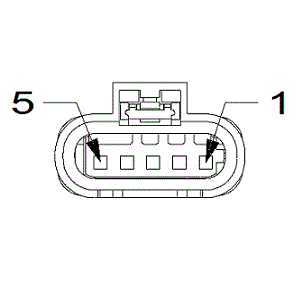

Fig 3: Assembly-Egr Valve Wire Insertion View (3.6L GAS)

Courtesy of CHRYSLER

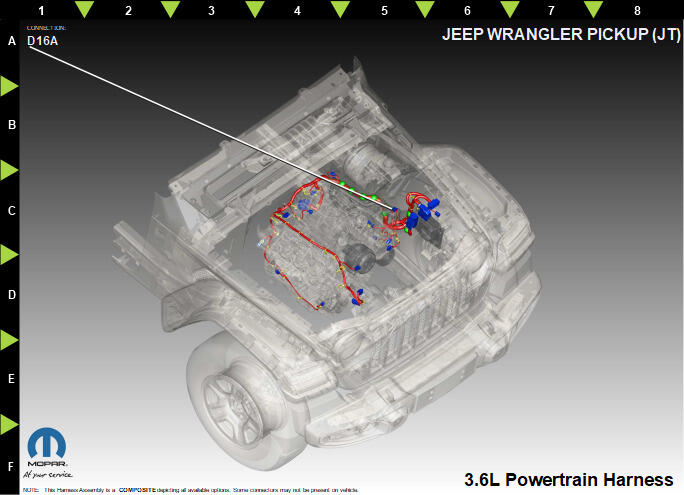

Fig 4: Assembly-Egr Valve Component Location View (3.6L GAS)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K900	DB/DG	0.50	SENSOR GROUND	N/A
2	K683	DB/GY	0.50	SENSOR SIGNAL	N/A
3	F856	YE/PK	0.50	5 VOLT SUPPLY	N/A
4	K684	DB/YE	0.50	MOTOR (-)	N/A
5	K682	DB/WH	0.50	MOTOR (+)	N/A
