Assembly-Def Tank C2 (Standard) Connector End View (D2525B)

Harness-Family: JUMPER_UREA_TANK

Color: BLACK

Gender: FEMALE

Part Number: 1_928_403_738

Part Description: Not Available

Connector No: D2525B

Option: Standard

Repair Kit Part Number: 68528075AA

Cavity Count: 5

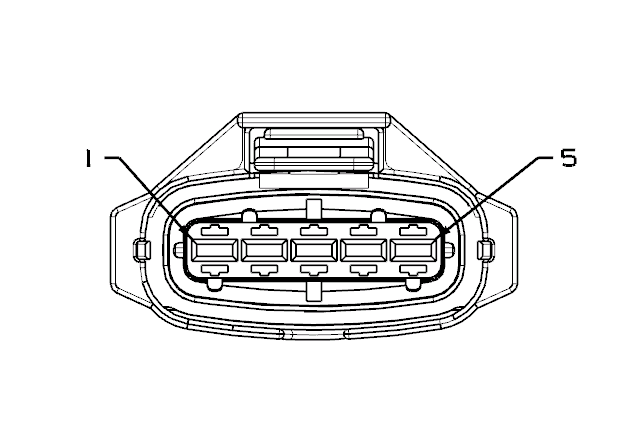

Fig 1: Assembly-Def Tank C2 Connector End View (Standard)

Courtesy of CHRYSLER

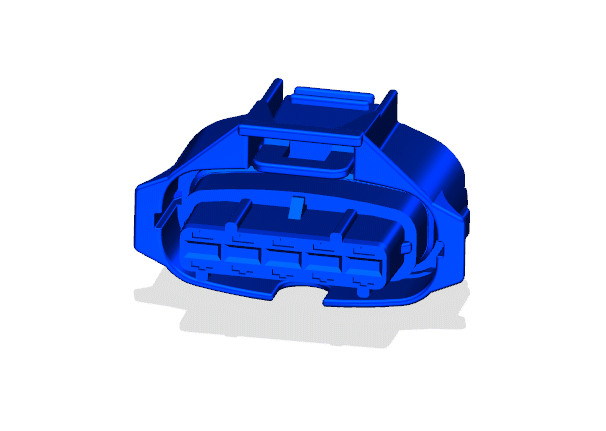

Fig 2: Assembly-Def Tank C2 Isometric View (Standard)

Courtesy of CHRYSLER

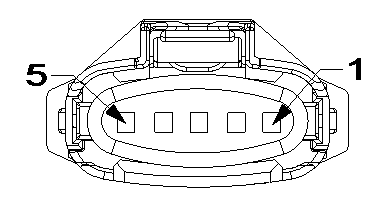

Fig 3: Assembly-Def Tank C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

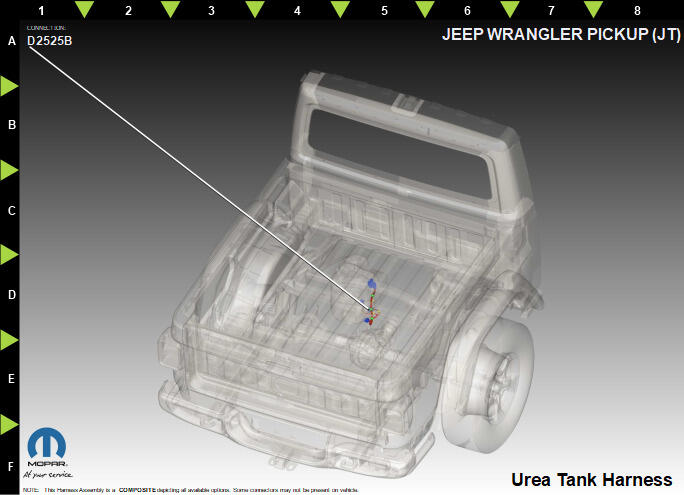

Fig 4: Assembly-Def Tank C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K414	BN/YE	0.75	DEF LEVEL/TEMP SIGNAL	N/A
2	K420	DB/OG	0.50	DEF LEVEL/TEMP RETURN	N/A
3	F343	BN/YE	2.0	FUSED ASD RELAY OUTPUT	N/A
4	K403	DB	1.0	DEF TANK HEATER SUPPLY	N/A
5	Z906	BK	2.0	GROUND	N/A
