Assembly-Def Tank C1 (Standard) Connector End View (D2525A)

Harness-Family: JUMPER_UREA_TANK

Color: BLACK

Gender: FEMALE

Part Number: 1_928_403_736

Part Description: Not Available

Connector No: D2525A

Option: Standard

Repair Kit Part Number: 68528071AA

Cavity Count: 4

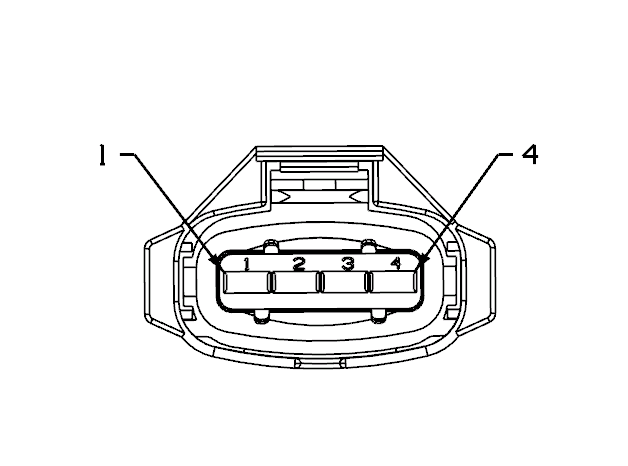

Fig 1: Assembly-Def Tank C1 Connector End View (Standard)
GCWD1083366Courtesy of CHRYSLER

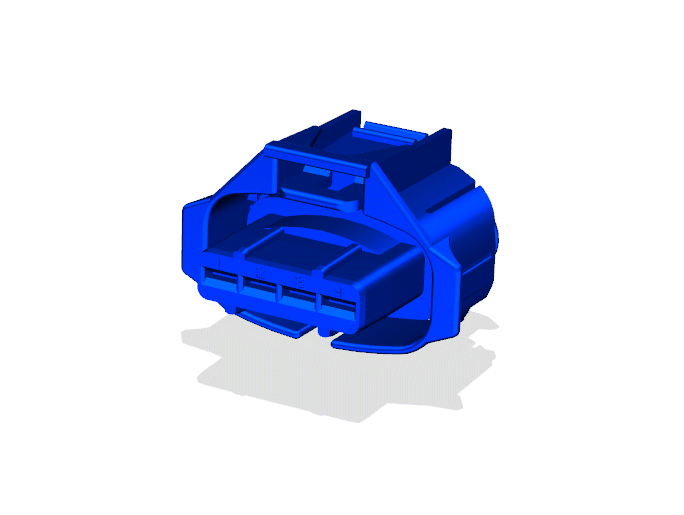

Fig 2: Assembly-Def Tank C1 Isometric View (Standard)
GCWD1084743Courtesy of CHRYSLER

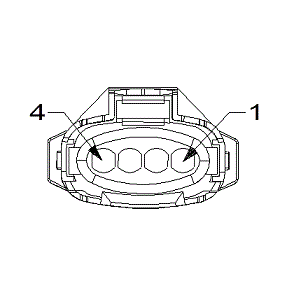

Fig 3: Assembly-Def Tank C1 Wire Insertion View (Standard)
GCWD1009890Courtesy of CHRYSLER

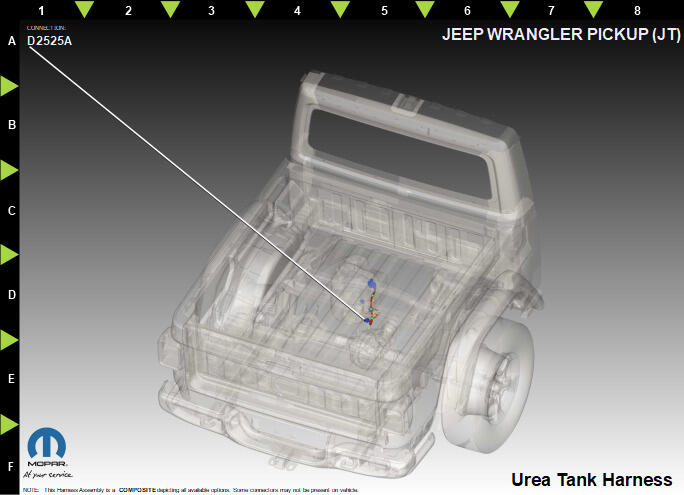

Fig 4: Assembly-Def Tank C1 Component Location View (Standard)
GCWD1318876Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 F203 PK/BU 0.50 FUSED SCR RELAY 1 OUTPUT N/A
2 K481 BN/GY 0.75 DEF PURGE PUMP CONTROL N/A
3 K482 BN 0.75 DEF SUPPLY PUMP CONTROL N/A
4 F203 PK/BU 0.50 FUSED SCR RELAY 1 OUTPUT N/A
