Antenna-SDARS (Standard) Connector End View (D5900B)

Harness-Family: Antenna_Body

Color: CURRY

Gender: MALE

Part Number: 6-1438912-0

Part Description: JACK KIT RG-316 OR RG-174, FAKRA, SMB

Connector No: D5900B

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 1

Fig 1: Antenna-Sdars Connector End View (Standard)
GCWD1006576Courtesy of CHRYSLER

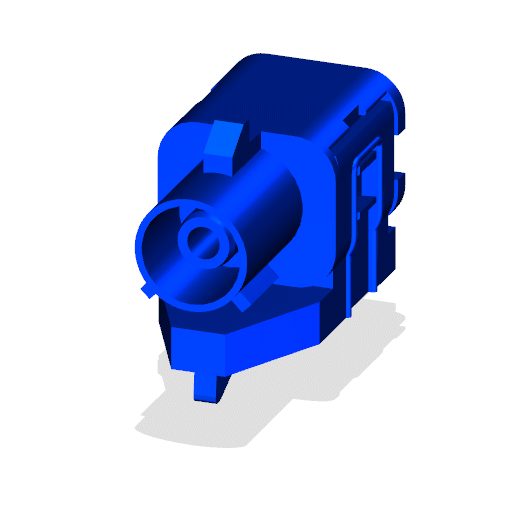

Fig 2: Antenna-Sdars Isometric View (Standard)
GCWD1085246Courtesy of CHRYSLER
Fig 3: Antenna-Sdars Wire Insertion View (Standard)
GCWD1008772Courtesy of CHRYSLER

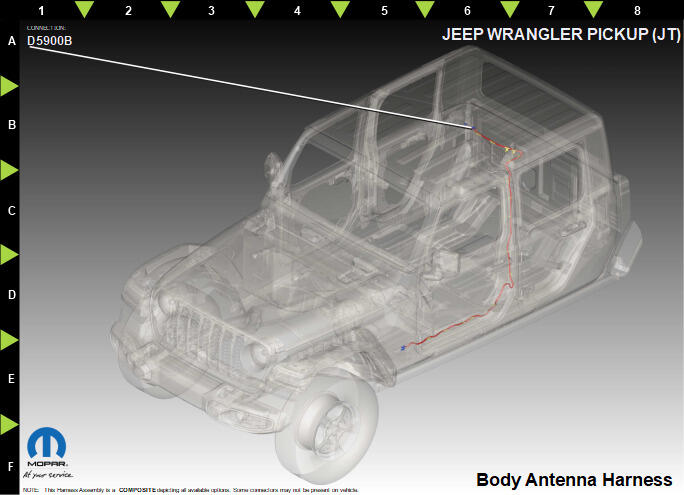

Fig 4: Antenna-Sdars Component Location View (Standard)
GCWD1318464Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D106 BK 0.20 SATELLITE RADIO ANTENNA SIGNAL N/A
