Antenna-Passive Entry 3 (Standard) Connector End View (D3103A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 2-1438608-1

Part Description: Not Available

Connector No: D3103A

Option: Standard

Repair Kit Part Number: 68057306AA

Cavity Count: 2

Fig 1: Antenna-Passive Entry 3 Connector End View (Standard)
GCWD1006482Courtesy of CHRYSLER
Fig 2: Antenna-Passive Entry 3 Isometric View (Standard)
GCWD1085399Courtesy of CHRYSLER
Fig 3: Antenna-Passive Entry 3 Wire Insertion View (Standard)
GCWD1008338Courtesy of CHRYSLER

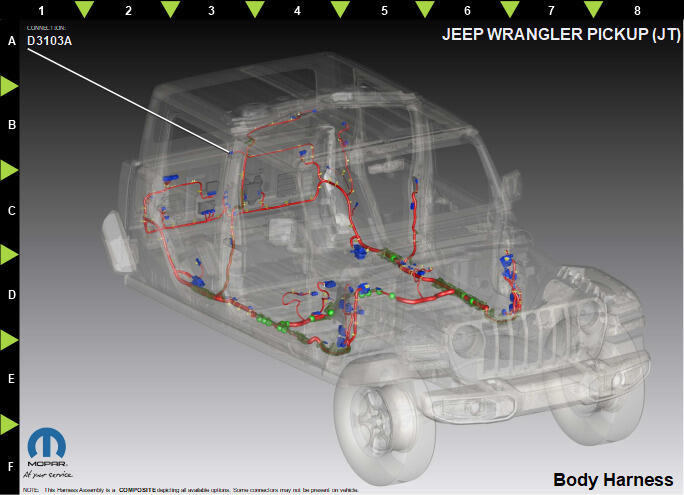

Fig 4: Antenna-Passive Entry 3 Component Location View (Standard)
GCWD1318717Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D924 GY/YE 0.35 PASSIVE ENTRY ANTENNA 3 SIGNAL N/A
2 D925 GY/DB 0.35 PASSIVE ENTRY ANTENNA 3 RETURN N/A
