Amplifier-Radio C5 (Standard) Connector End View (D3804E)

Harness-Family: IP

Color: GRAY

Gender: FEMALE

Part Number: 638207-6

Part Description: INSULATOR

Connector No: D3804E

Option: Standard

Repair Kit Part Number: 05135638AA

Cavity Count: 10

Fig 1: Amplifier-Radio C5 Connector End View (Standard)

Courtesy of CHRYSLER

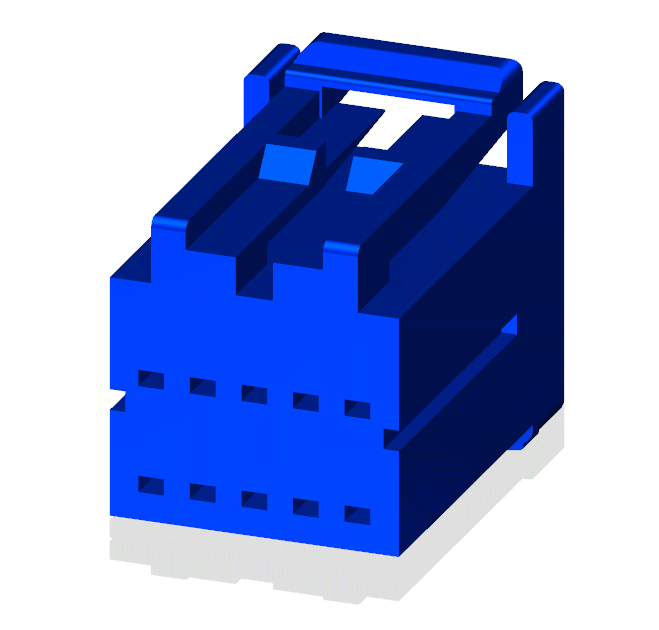

Fig 2: Amplifier-Radio C5 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Amplifier-Radio C5 Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Amplifier-Radio C5 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	X209	GY/OG	0.75	AMPLIFIED LEFT I/P SPEAKER (+)	N/A
3	X208	GY/DG	0.75	AMPLIFIED RIGHT I/P SPEAKER (+)	N/A
4	X201	GY/VT	0.75	LEFT FRONT SPEAKER (+)	N/A
5	X202	DG/VT	0.75	RIGHT FRONT SPEAKER (+)	N/A
6	N0	NA	0	NO CONNECT	N/A
7	X299	GY/YE	0.75	AMPLIFIED LEFT I/P SPEAKER (-)	N/A
8	X298	GY/GN	0.75	AMPLIFIED RIGHT I/P SPEAKER (-)	N/A
9	X291	GY/YE	0.75	LEFT FRONT SPEAKER (-)	N/A
10	X292	DG/YE	0.75	RIGHT FRONT SPEAKER (-)	N/A
