Airbag-Driver Squib 3 (Standard) Connector End View (D6663C)

Harness-Family: Airbag_DAB

Color: BLACK

Gender: FEMALE

Part Number: F760510

Part Description: Not Available

Connector No: D6663C

Option: Standard

Repair Kit Part Number: 68148100AA

Cavity Count: 2

Fig 1: Airbag-Driver Squib 3 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Airbag-Driver Squib 3 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Airbag-Driver Squib 3 Wire Insertion View (Standard)

Courtesy of CHRYSLER

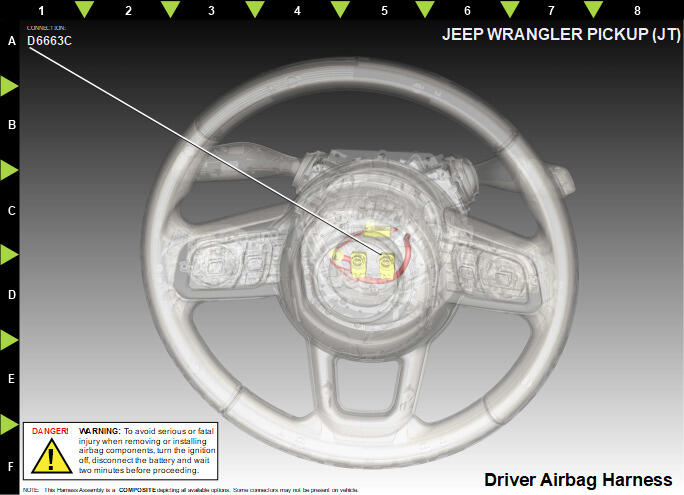

Fig 4: Airbag-Driver Squib 3 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	R67	GY/OG	0.80	DRIVER SQUIB 3 LINE 2	N/A
2	R69	GN/YE	0.80	DRIVER SQUIB 3 LINE 1	N/A
