Actuator-Mode Door-Front (Standard) Connector End View (D8A)

Harness-Family: HVAC

Color: BLACK

Gender: FEMALE

Part Number: 0-1456985-4

Part Description: Not Available

Connector No: D8A

Option: Standard

Repair Kit Part Number: 68087927AB

Cavity Count: 6

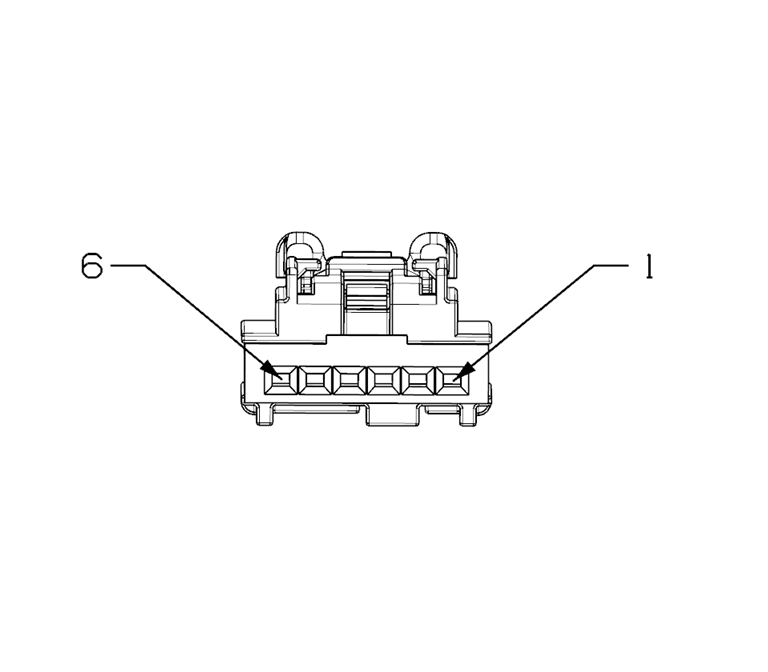

Fig 1: Actuator-Mode Door-Front Connector End View (Standard)
GCWD1238628Courtesy of CHRYSLER

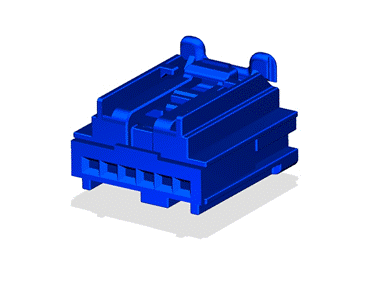

Fig 2: Actuator-Mode Door-Front Isometric View (Standard)
GCWD1318488Courtesy of CHRYSLER

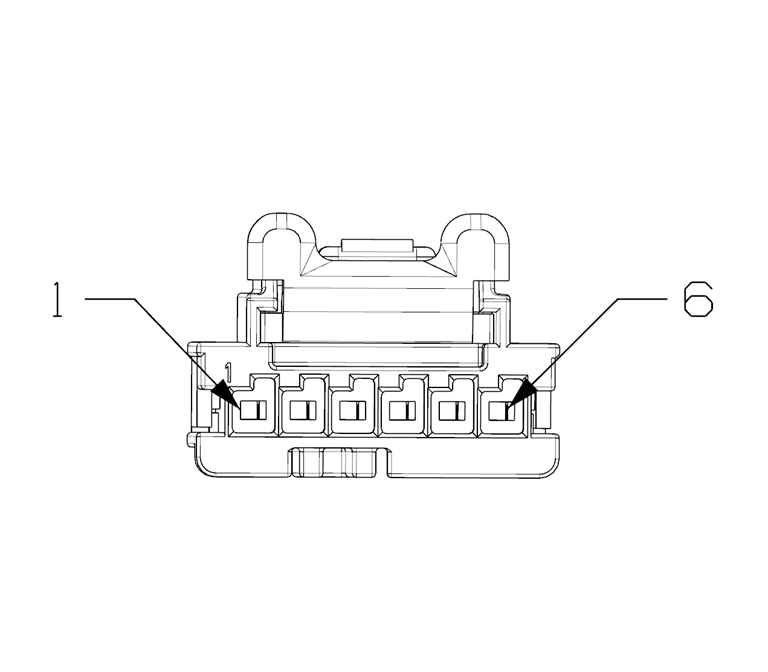

Fig 3: Actuator-Mode Door-Front Wire Insertion View (Standard)
GCWD1318197Courtesy of CHRYSLER

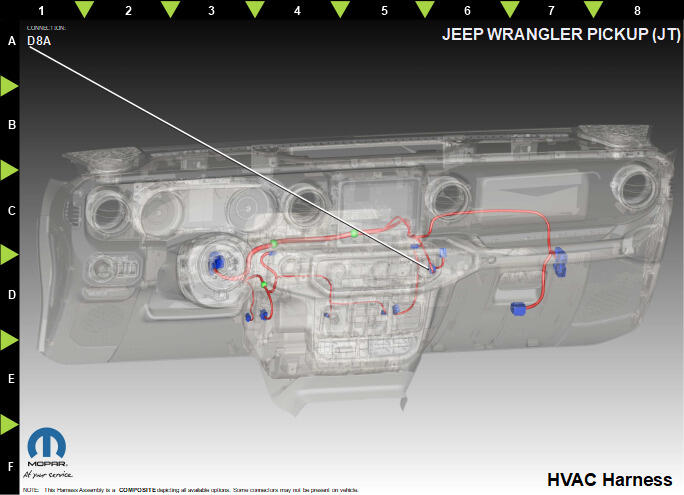

Fig 4: Actuator-Mode Door-Front Component Location View (Standard)
GCWD1318606Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 C142 DB/OG 0.35 DEFROST MODE DRIVE N/A
2 F710 BU/PK 0.35 5V REFERENCE SIGNAL N/A
3 C34 DB/BU 0.35 SIGNAL RETURN N/A
4 C235 BU/BG 0.35 MODE DOOR SIGNAL N/A
6 C143 DB/BN 0.35 PANEL MODE DRIVE N/A
