Engine Stop Start System: Notes
WARNING: This page is about a different variant/trim than selected.

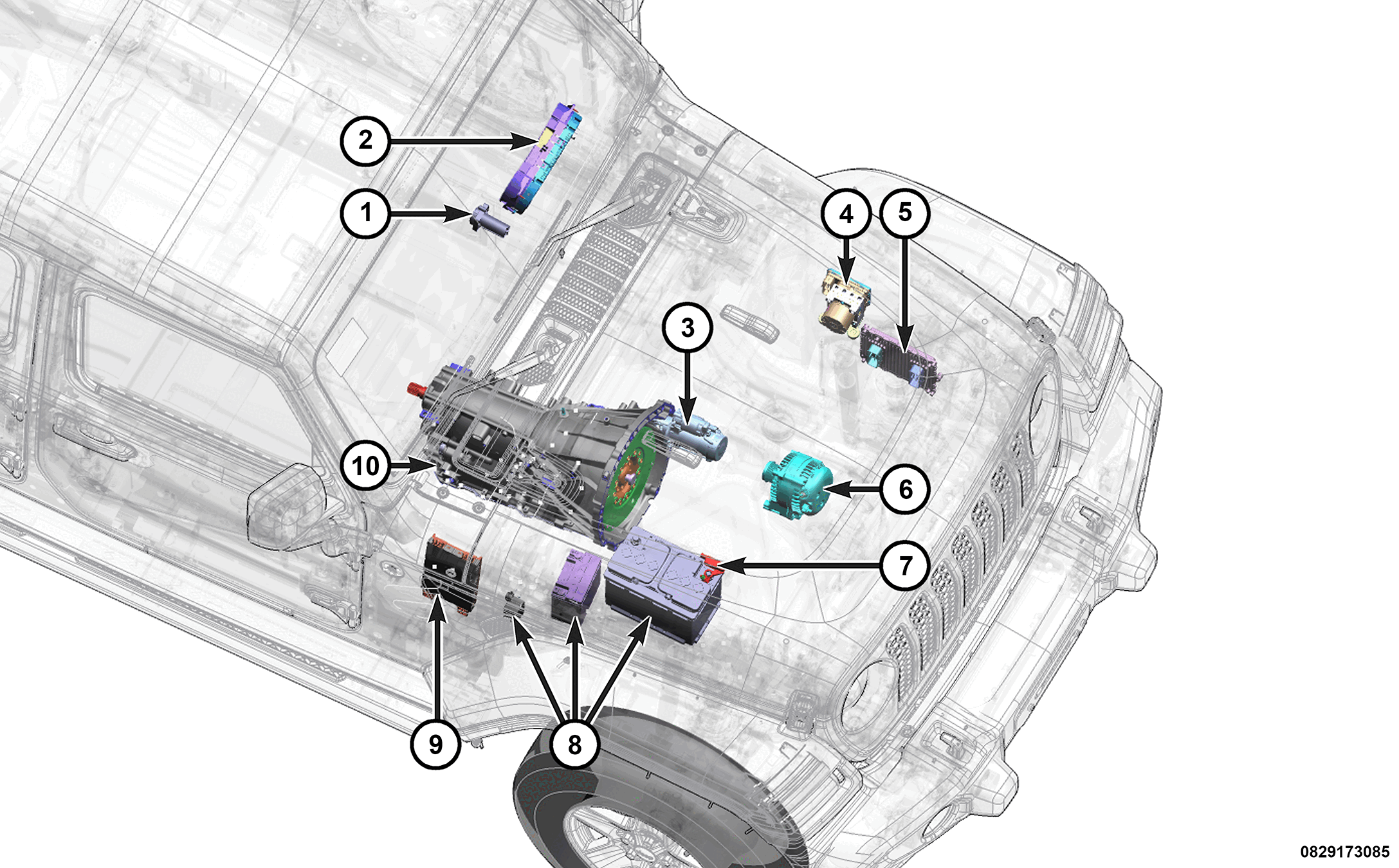

The following list indicates some of the components involved in the Engine Stop Start (ESS) system:
COMPONENT INDEX
| 1. | STOP/START Off Switch - Located in Instrument Panel |
| 2. | Instrument Panel Cluster (IPC) |
| 3. | Starter Motor |
| 4. | Anti-lock Brake System (ABS) Module |
| 5. | Powertrain Control Module (PCM) |
| 6. | Generator |
| 7. | Intelligent Battery Sensor (IBS) |
| 8. | Dual Battery System and Relays - (Main and Auxiliary Batteries) |
| 9. | Body Control Module (BCM) |
| 10. | Transmission Control Module (TCM) - Automatic Transmissions (ATX) only |
| - | Starter Motor Relays - Located within the main Power Distribution Center (PDC) |
| - | Potential ESS System Inhibitors |
