Technical Specifications
>>
General Specifications
>>
Guide Plate Pin
Guide Plate Pin
WARNING:
This page is about a different variant/trim than selected.

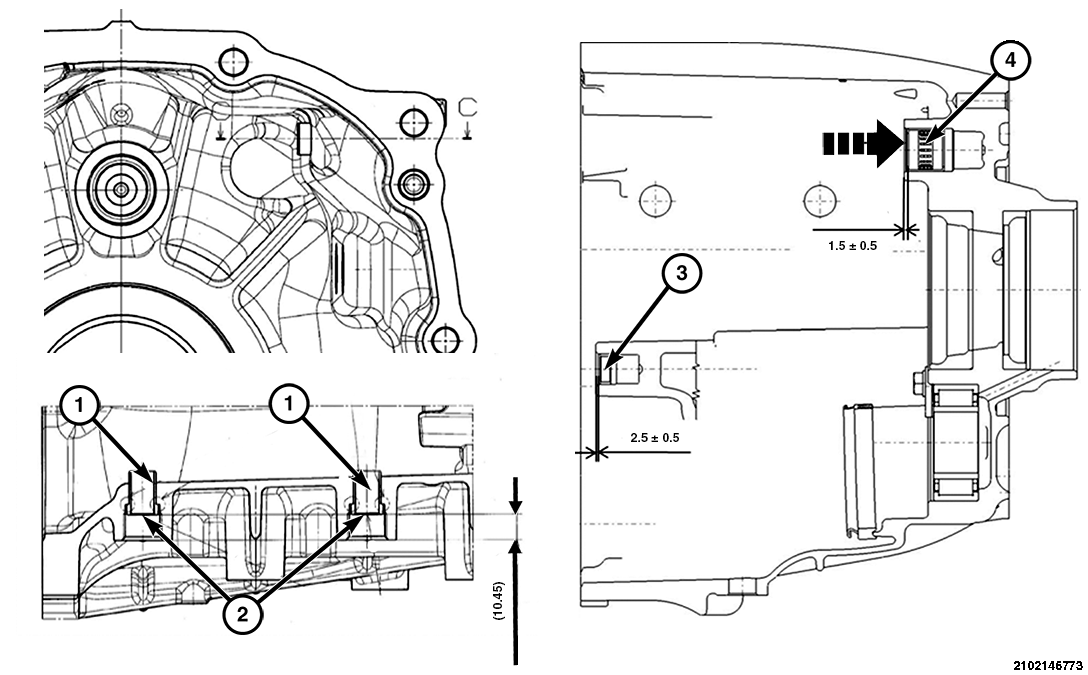

GUIDE PLATE PIN
INDEX
DEPTH
1. Pin
4mm (0.15in)
2. Guide Plate
-
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
