Gear Ratios

WARNING: This page is about a different variant/trim than selected.
GEAR RATIOS

GEAR RATIO
FIRST 5.133
SECOND 2.631
THIRD 1.536
FOURTH 1.00
FIFTH 0.811
SIXTH 0.719
REVERSE 4.491

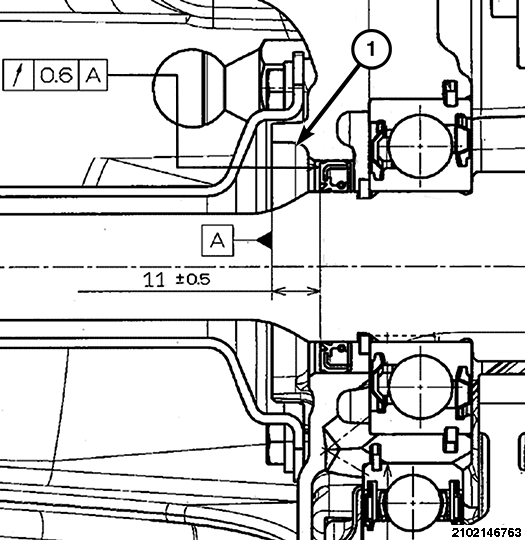

INSTALLATION DEPTHS

GC0182308Courtesy of CHRYSLER GROUP, LLC
