Input Shaft

WARNING: This page is about a different variant/trim than selected.

DISASSEMBLY

Courtesy of CHRYSLER GROUP, LLC

PART IDENTIFICATION

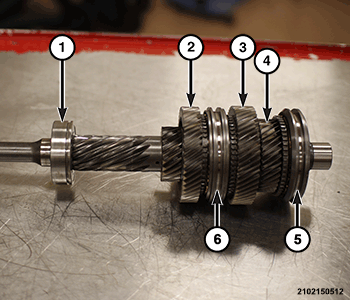

Callout	Part
1.	Front Bearing
2.	Fifth Gear
3.	Sixth Gear
4.	Third Gear
5.	3-4 Synchronizer
6.	5-6 Synchronizer

Courtesy of CHRYSLER GROUP, LLC

1 - 3-4 Synchronizer Hub Snap Ring

Using a suitable tool, remove snap ring from the rear side of the shaft holding the 3-4 synchronizer hub.

Courtesy of CHRYSLER GROUP, LLC

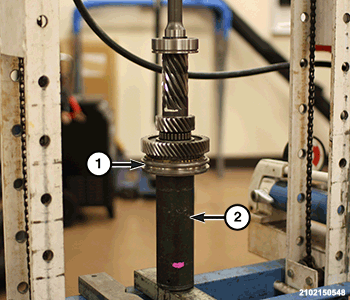

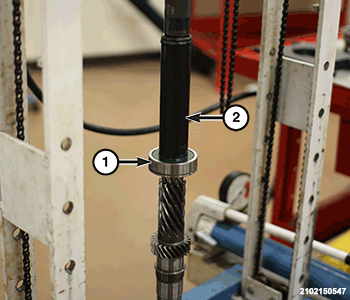

1 - 3rd Gear

2 - Puller 9647
Using the (special tool #9647, Puller) and a press, place the puller under the 3rd gear and press the shaft to remove the 3-4 synchronizer assembly.

Courtesy of CHRYSLER GROUP, LLC

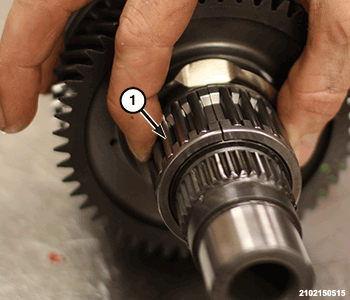

1 - 3rd Gear Needle Bearing
Remove the 3rd gear needle bearing from the shaft assembly.

Courtesy of CHRYSLER GROUP, LLC

1 - Needle Bearing Spacer
Remove the needle bearing spacer from the shaft assembly.

Courtesy of CHRYSLER GROUP, LLC

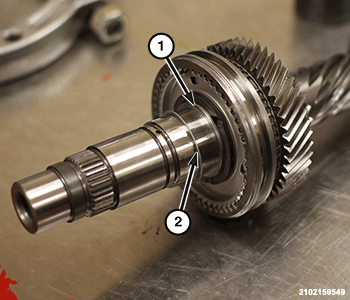

1 - 3rd Gear Thrust Washer

2 - Snap Ring
With a suitable tool, remove the snap ring holding the 3rd gear thrust washer.

Courtesy of CHRYSLER GROUP, LLC

1 - 3rd Gear Thrust Washer
Remove the 3rd gear thrust washer.

Courtesy of CHRYSLER GROUP, LLC

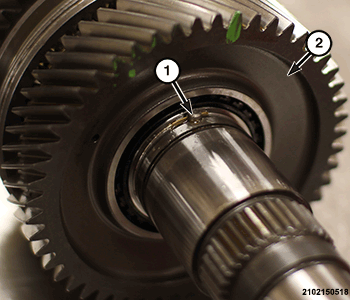

1 - Indexing Pin

2 - 6th Gear
Remove the indexing pin from the shaft and remove 6th gear.

Courtesy of CHRYSLER GROUP, LLC

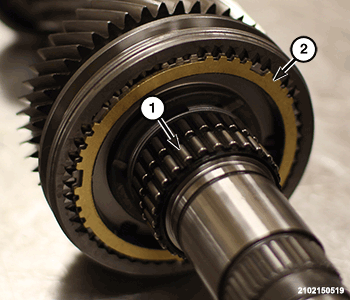

1 - 6th Gear Needle Bearing

2 - Synchronizer Ring
Remove the 6th gear needle bearing and synchronizer ring from the assembly.

Courtesy of CHRYSLER GROUP, LLC

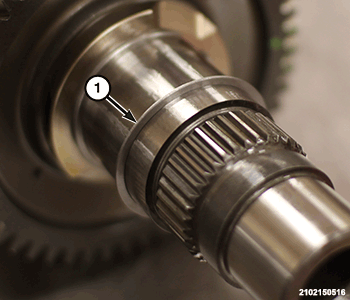

1 - Needle Bearing Spacer

2 - 5-6 Synchronizer Snap Ring
Remove the needle bearing spacer. Using a suitable tool, remove the snap ring retaining the 5-6 synchronizer assembly.

Courtesy of CHRYSLER GROUP, LLC

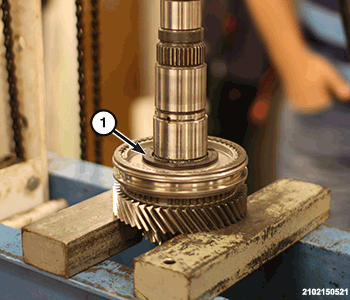

1 - 5-6 Synchronizer Assembly
With suitable tool supporting 5th gear and a press, press the shaft to remove the 5-6 synchronizer assembly and the 5th gear.

Courtesy of CHRYSLER GROUP, LLC

1 - 5th Gear Needle Bearing
Remove the 5th gear needle bearing.

Courtesy of CHRYSLER GROUP, LLC

1 - Snap Ring
With a suitable tool, remove the snap ring retaining the front bearing.

Courtesy of CHRYSLER GROUP, LLC

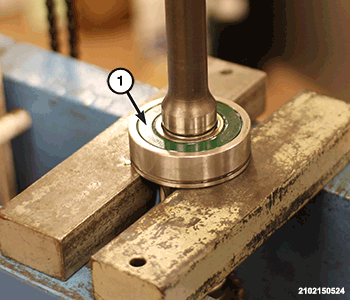

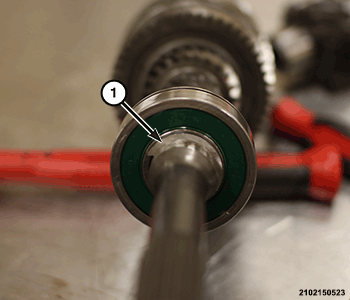

1 - Front Bearing
Using a suitable tool and a press, support the inner race of the front bearing and press the shaft to remove the bearing.

ASSEMBLY

Courtesy of CHRYSLER GROUP, LLC

1 - Front Bearing

2 - Installer, Bearing W-262

Using a press, press the inner race of the input bearing (snap ring groove towards the rear) on the shaft using (special tool #W-262, Installer, Bearing).

Courtesy of CHRYSLER GROUP, LLC

1 - Front Bearing Snap Ring (Selective)
Due to manufacturing tolerances, install a NEW , LARGEST selective front bearing snap-ring that fits into the groove. Be sure to tap the ends of the snap-ring to fully set the ring.

Courtesy of CHRYSLER GROUP, LLC

1 - 5th Gear Needle Bearing
Install the 5th gear needle bearing to shaft. Apply specified oil to bearing.

Courtesy of CHRYSLER GROUP, LLC

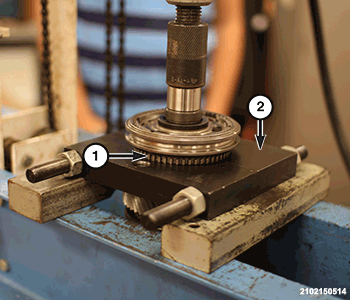

1 - 5-6 Synchronizer Hub

2 - Installer, Bearing D-389
Install 5th gear and 5th gear synchronizer ring, be sure ring tabs are indexed to the gear and hub to prevent damage. Using the (special tool #D-389, Installer, Bearing) and a press, support the 5-6 synchronizer hub (dot on hub towards rear of shaft, deep step on sleeve towards front), and press the shaft until the hub is fully seated.

Courtesy of CHRYSLER GROUP, LLC

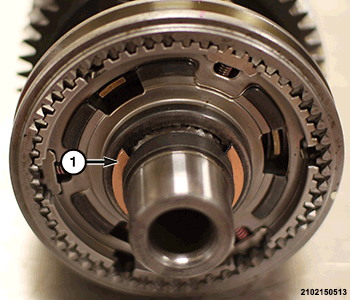

1 - 5-6 Synchronizer Snap Ring (Selective)

2 - needle bearing thrust washer
Due to manufacturing tolerances, install a NEW , LARGEST selective snap-ring that fits into the groove. Install the needle bearing thrust washer.

Courtesy of CHRYSLER GROUP, LLC

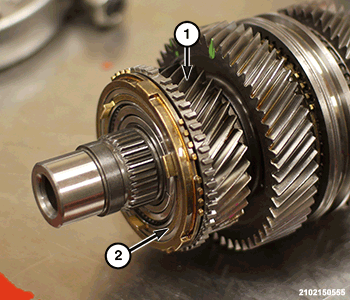

1 - 6th Gear Needle Bearing

2 - Synchronizer Ring
Install the 6th Gear needle bearing and synchronizer ring to the assembly. Apply specified oil to the needle bearing. Be certain that the synchronizer ring fingers are indexed properly to the hub.

Courtesy of CHRYSLER GROUP, LLC

1 -6th Gear
Install the 6th gear to assembly.

Courtesy of CHRYSLER GROUP, LLC

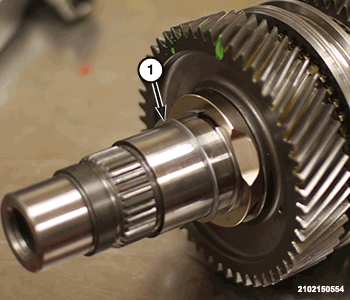

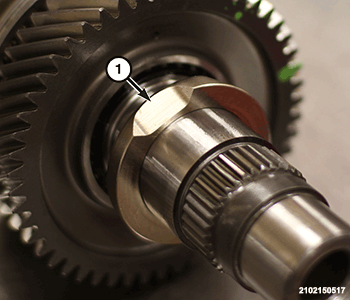

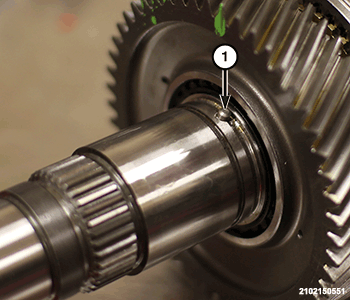

1 - 3rd Gear Thrust Washer Indexing Pin Hole
Install the 3rd gear thrust washer indexing pin into the hole in the shaft.

Courtesy of CHRYSLER GROUP, LLC

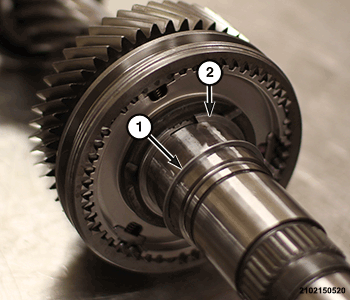

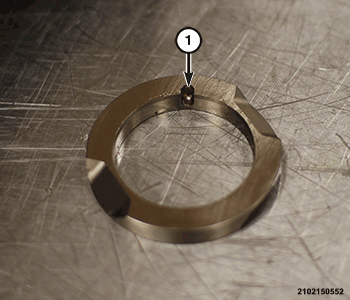

1 - 3rd Gear Thrust Washer Indexing Notch
Find the indexing notch in the 3rd gear thrust washer.

Courtesy of CHRYSLER GROUP, LLC

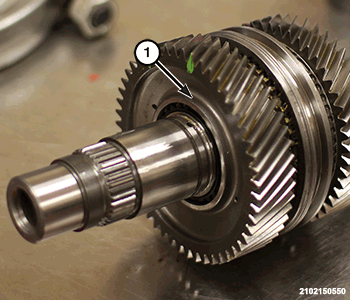

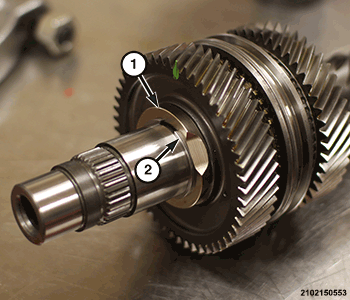

1 - 3rd Gear Thrust Washer

2 - Snap Ring (Selective)
Align the 3rd gear thrust washer with the pin and retain in place with a NEW , LARGEST selective snap ring that fits in the groove. Be sure to tap the ends of the snap-ring to fully set the ring.

Courtesy of CHRYSLER GROUP, LLC

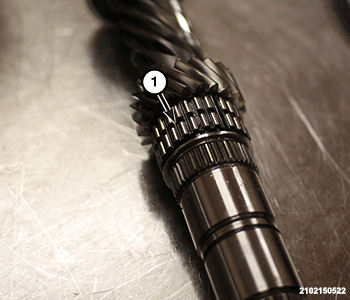

1 - 3rd Gear Needle Bearing Spacer
Install the 3rd gear needle bearing spacer to the assembly. Apply specified oil to the needle bearing.

Courtesy of CHRYSLER GROUP, LLC

1 - 3rd Gear Needle Bearing
Install the 3rd gear needle bearing to the assembly.

Courtesy of CHRYSLER GROUP, LLC

1 - 3rd Gear

2 - 3rd Gear Synchronizer Rings
Install the 3rd gear assembly and synchronizer rings. Be certain that the synchronizer ring fingers are indexed properly to the gear.

Courtesy of CHRYSLER GROUP, LLC

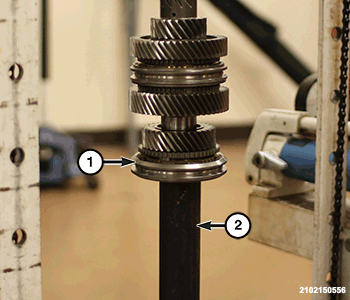

1 - 3-4 Synchronizer

2 - Installer, Bearing/Gear 6448A
Align the synchronizer fingers with the hub, place the 3-4 synchronizer (deep part of hub towards the back of shaft, with the stepped edge of sleeve towards the rear) on the assembly. Support the aligned parts with (special tool #6448A, Installer, Bearing/Gear) on a press and press the shaft to install the hub and synchronizer on the shaft assembly.

Courtesy of CHRYSLER GROUP, LLC

1 - 3-4 Synchronizer Hub Snap Ring (Selective)
Due to manufacturing tolerances, install a NEW , LARGEST selective 3-4 synchronizer hub snap-ring that fits in the groove. Be sure to tap the ends of the snap-ring to fully set the ring.
