Gear Shift Cables

REMOVAL

1. Remove the floor console. Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATIONCONSOLE, FLOOR, END CAP, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

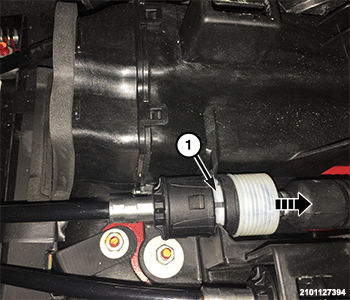

   1 - Shifter Cable Retainer

2. Disengage the retainers holding the cable housings to the shifter bracket by grabbing the collar on the cable and sliding it forward, while gently lifting up on the cable.

   Courtesy of CHRYSLER GROUP, LLC

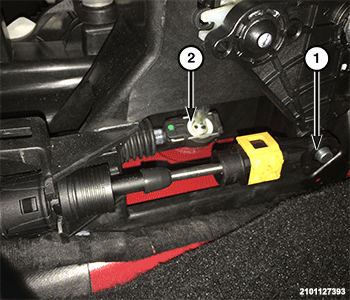

   1 - Neutral Gate Cable End

   2 - Range Cable End

3. Pry the neutral gate cable end to the right toward the passenger seat to disengage the cable end from the shifter pin.
4. Release the spring-clip holding the range cable end to the fulcrum ball under the shifter handle and push the cable end downward to disengage it.

   Courtesy of CHRYSLER GROUP, LLC

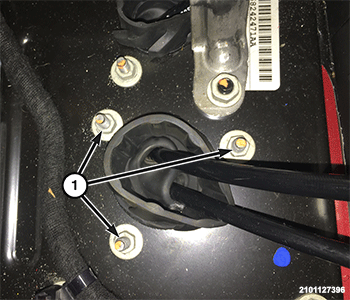

   1 - Shifter Cable Grommet Nuts

5. Remove the nuts from the shifter cable grommet, push the shifter cable grommet downward, taking care not to tear the shifter cable grommet.
6. Push the cables down through the shifter cable grommet hole.
7. Raise and support the vehicle

   Refer to HOISTING, STANDARD PROCEDURE .

   Courtesy of CHRYSLER GROUP, LLC

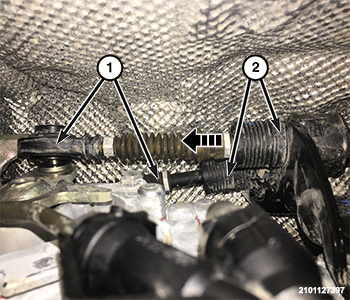

   1 - Cable Ends

   2 - Retainer

8. Disengage the retainer holding the range cable to the transmission bracket and lift the range cable housing from the bracket.
9. Pry the range cable upward to disengage the cable end (1) from the counterweighted gearshift lever.
10. Disengage the retainer holding the neutral gate cable to the transmission bracket and lift the cable housing from the bracket.
11. Pry the neutral gate cable end to the left (driver side) to disengage the cable end from the shift lever
12. Remove the cables from the vehicle.

INSTALLATION

1. Raise and support the vehicle Refer to HOISTING, STANDARD PROCEDURE .
2. Insert the shift cables through the access hole in the floor pan under the vehicle.
3. Push the rubber floor plug upward into the access hole and align the studs to the mounting holes in the underside of the floor pan.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Cable Ends

   2 - Retainer

4. Route the cables under the vehicle and position the retainers in the shift cable bracket (range select cable located on top, neutral gate cable located on bottom). Push down on the cable retainers to snap them into place.
5. Connect the cable ends to the shift levers at the transmission (range select the on top, neutral gate on the left side).
6. Remove the support and lower the vehicle.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Shifter Cable Grommet Nuts

7. Tighten the shifter cable grommet nuts to the proper. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

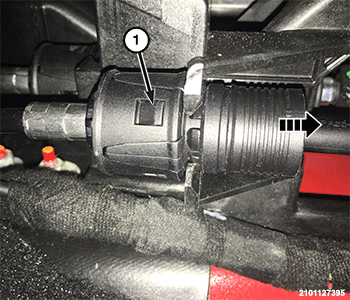

   1 - Shifter Cable Retainer

8. Route the range cable under the shifter and engage the cable housings into position on the shifter bracket. Push to the left to lock the cable housings in place.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Neutral Gate Cable End

   2 - Range Cable End

9. Connect the range cable end to the ball end under the shifter, ensuring the retaining clip snaps into place. Position the neutral gate cable end to the shift lever and snap it in place.
   NOTE:

   Do not lock the neutral gate cable adjustment yet.

10. Position the gear shifter in third gear inside the vehicle.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Locking Tab

11. While holding the shifter forward against the blocker in third gear, depress the locking tab to lock the adjuster.
12. Verify the shifter goes into all gears smoothly and there is no resistance or excessive force needed to shift into all gears.
13. Install the floor console assembly

    Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATIONCONSOLE, FLOOR, END CAP, REMOVAL AND INSTALLATION .

14. Road test the vehicle to verify the repair.
