Description And Operation - Exhaust Gas RECIRCULATION (EGR) System - 3.0L Diesel: Notes
WARNING: This page is about a different variant/trim than selected.
HIGH PRESSURE EGR SYSTEM DESCRIPTION

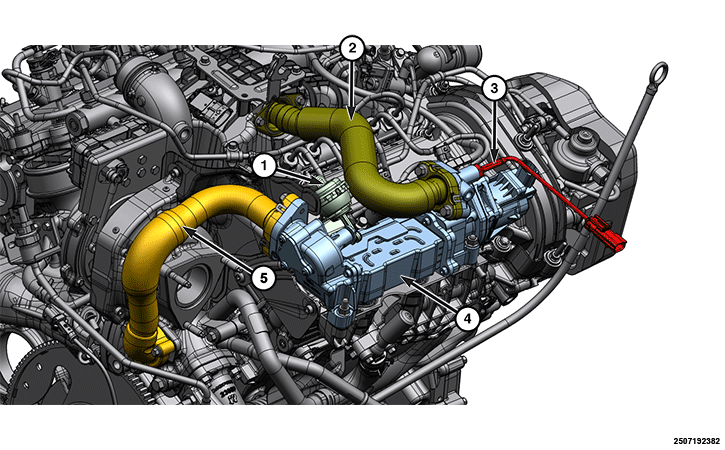

The High Pressure Exhaust Gas Recirculation (EGR) system includes the following components (typical 3.0L diesel shown):
COMPONENT INDEX
| 1. | EGR Bypass Vacuum Actuator |
| 2. | Upper High Pressure EGR Tube |
| 3. | EGR Temperature Sensor |
| 4. | EGR Cooler |
| 5 | Lower High Pressure EGR Tube |
| - | EGR Valve |
LOW PRESSURE EGR SYSTEM DESCRIPTION

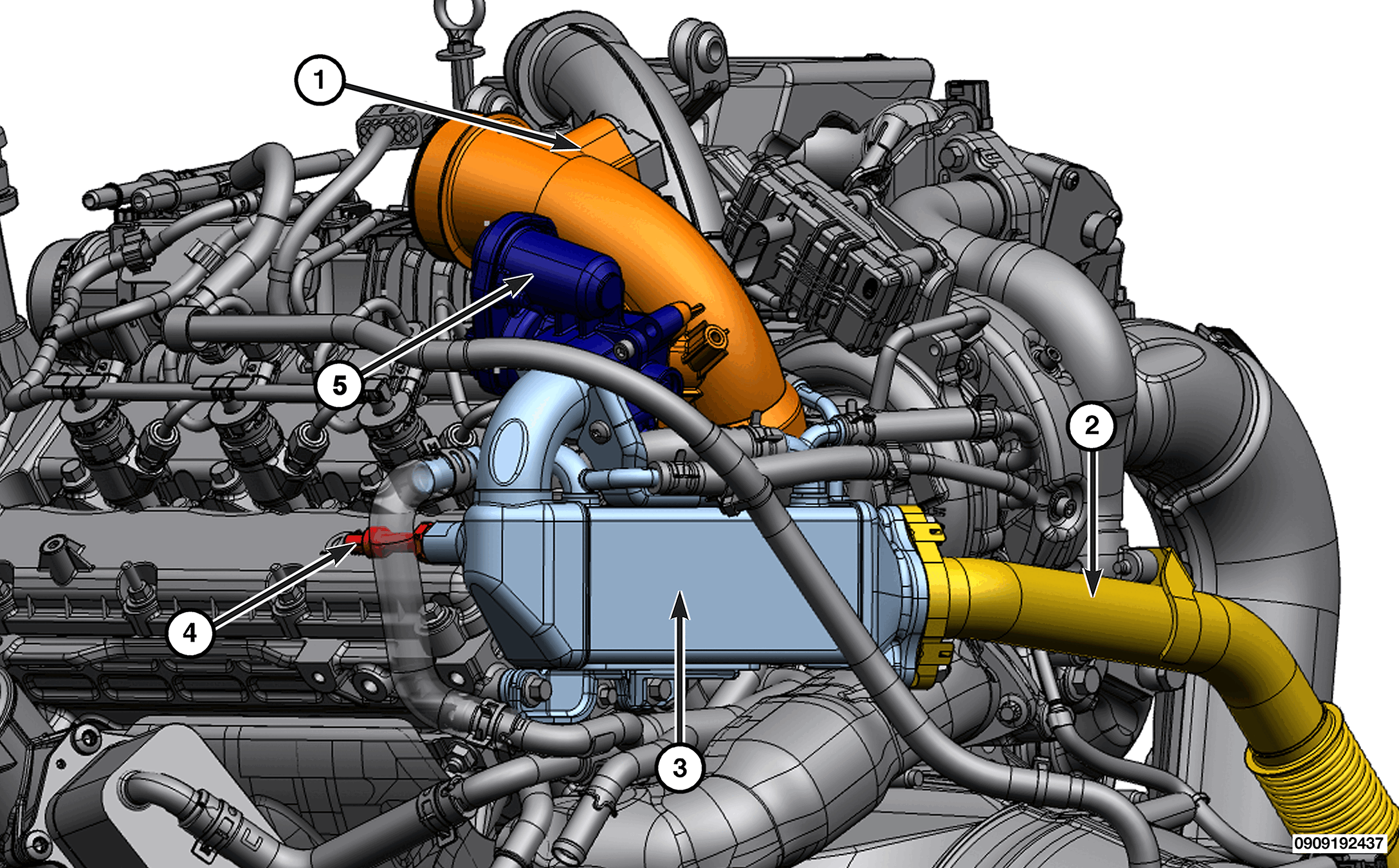

The Exhaust Gas Recirculation (EGR) system includes the following components (typical 3.0L diesel shown):
COMPONENT INDEX
| 1. | Upper Turbocharger Inlet Elbow |
| 2. | Low Pressure EGR Tube |
| 3. | EGR Cooler |
| 4. | EGR Temperature Sensor |
| 5 | EGR Valve |
