Description And Operation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

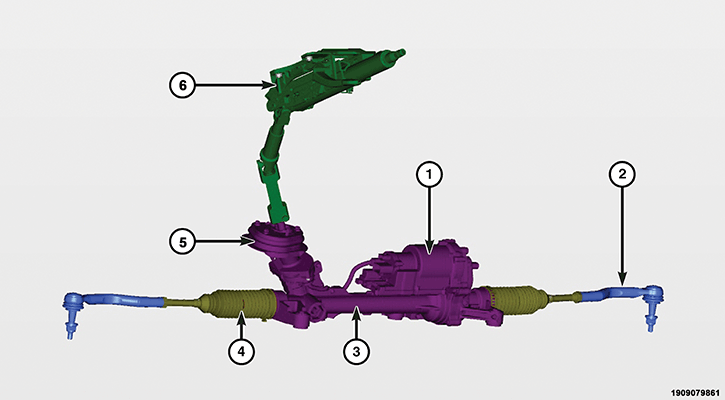

Vehicles with Electric Power Steering (EPS) system consisting of:
- EPS module (1)
- Outer tie rod ends (2)
- Rack and pinion steering gear (3)
- Inner tie rod ends (4)
- Dash Seal (5)
- Steering column (6)
NOTE:
The EPS system is a dry gear system. The EPS system does not contain any hydraulic components such as:
- a belt-driven hydraulic pump.
- any high-pressure hydraulic hoses.
- power steering fluid.
The EPS system will not experience a hydraulic leak. If fluid is detected at the front of the vehicle on or near the steering gear, investigate other systems.
