Removal And Installation: Installation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
When installing the steering wheel, the clockspring must be centered in its travel to avoid overextending the clockspring inner parts, causing the clockspring to become inoperative. If removed and handled properly using the correct procedures, it should be in the "centered" position. If there is any question as to whether the clockspring is in the "centered" position of travel, perform the clockspring centering procedure before proceeding.
- Confirm that:
- The front wheels are in the STRAIGHT-AHEAD position.
- The turn signal stalk is in the NEUTRAL position.

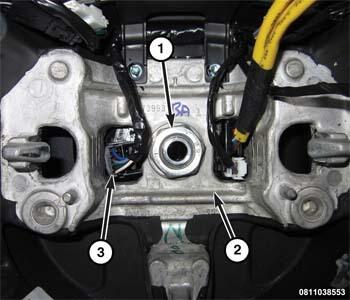

- Install the steering wheel retaining fastener (1). Tighten the steering wheel retaining nut to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Connect the clockspring wire harness connectors (3).
- Install the driver airbag. Refer to AIR BAG, DRIVER, REMOVAL AND INSTALLATION
.WARNING:
Do not reconnect the battery without first performing the Airbag System Test procedure. Failure to perform the Airbag System Test may result in accidental airbag deployment and serious or fatal injury.
- Do not connect the negative battery cable at this time. The Supplemental Restraint System (SRS) Verification Test procedure should be performed following service of any SRS component. Refer to RESTRAINTS SYSTEM VERIFICATION TEST .
- Verify vehicle and system operation.
