Power Transfer Unit (PTU) Fluid Fill

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the front belly pan. Refer to BELLY PAN, FRONT, REMOVAL AND INSTALLATION .
  3. Position a drain pan under the PTU fill plug.

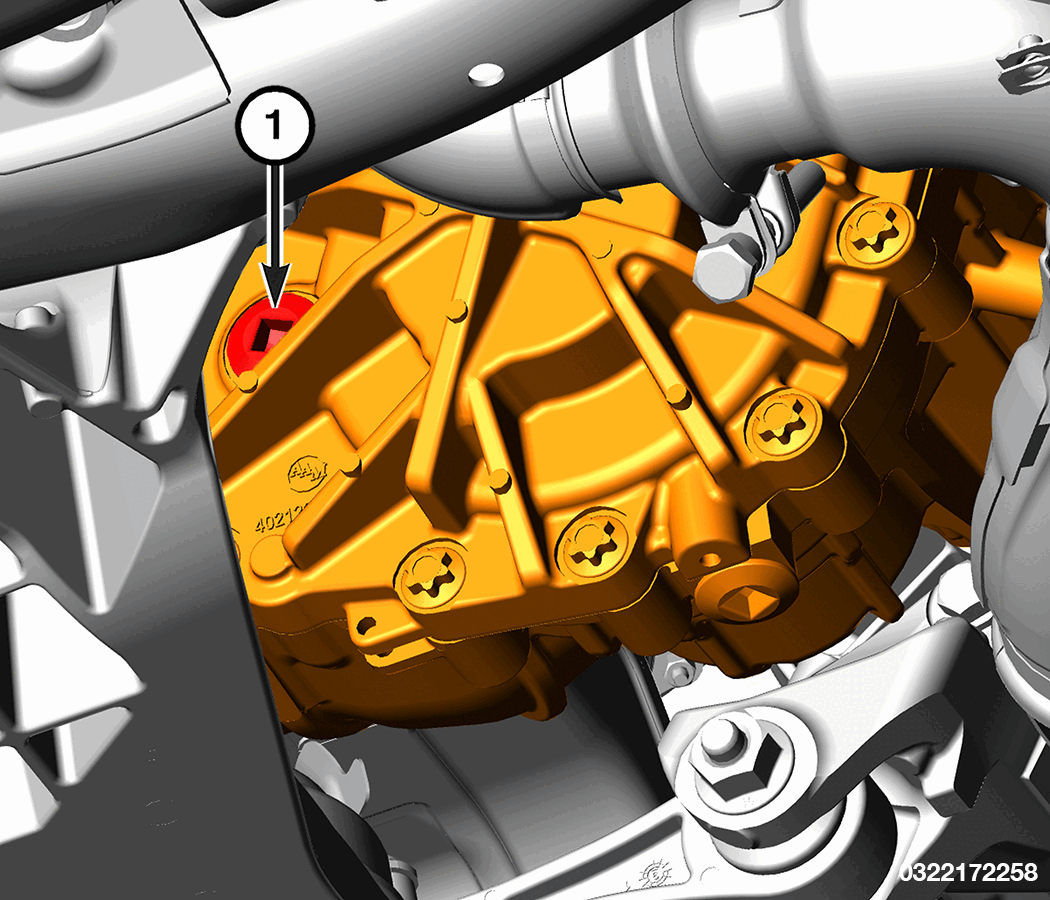

    GC0200266Courtesy of CHRYSLER GROUP, LLC
  4. Remove the fill plug (1).
  5. Fill the PTU to the bottom of the PTU fill plug hole using the specified fluid. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
    NOTE:

    It may take several minutes for the fluid to equalize in the PTU before a final fluid level check can be determined.

  6. Install PTU fill plug and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  7. Install the front belly pan. Refer to BELLY PAN, FRONT, REMOVAL AND INSTALLATION .
  8. Remove the support and lower the vehicle.
