Removal And Installation: Installation

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the PTU on the transmission.

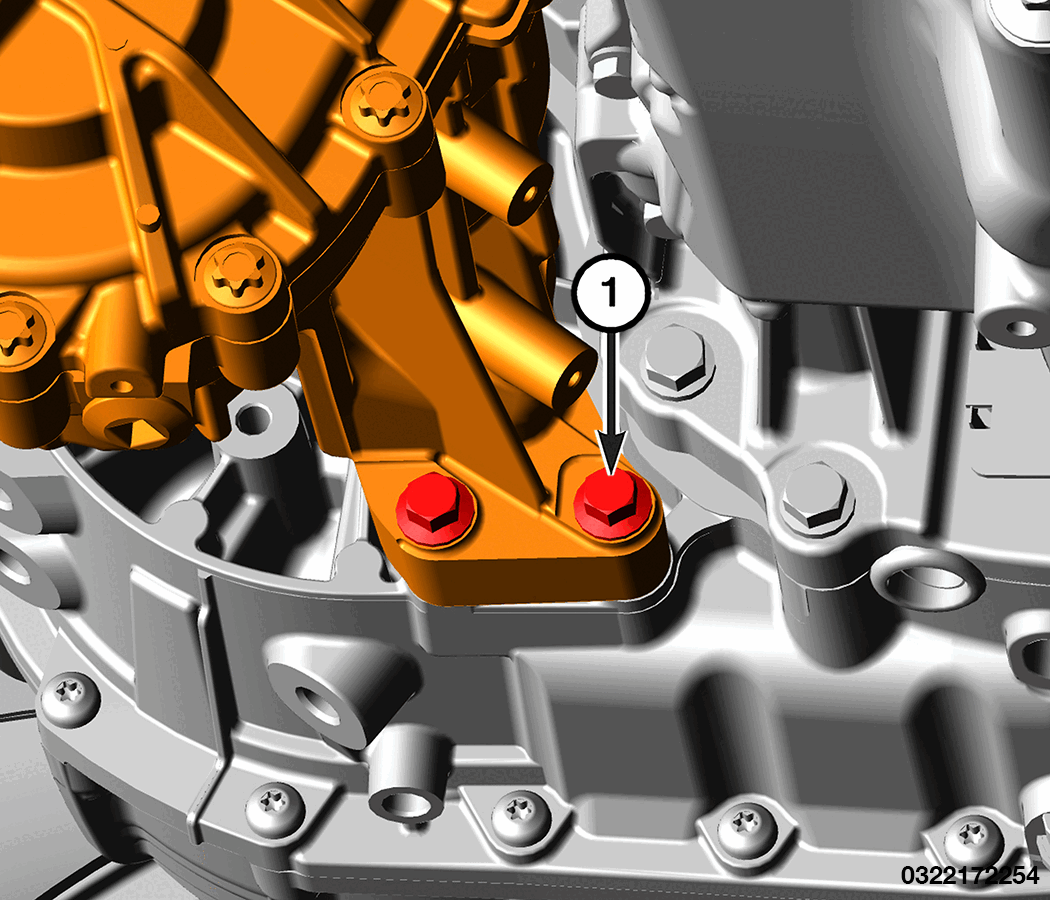

    GC0200367Courtesy of CHRYSLER GROUP, LLC

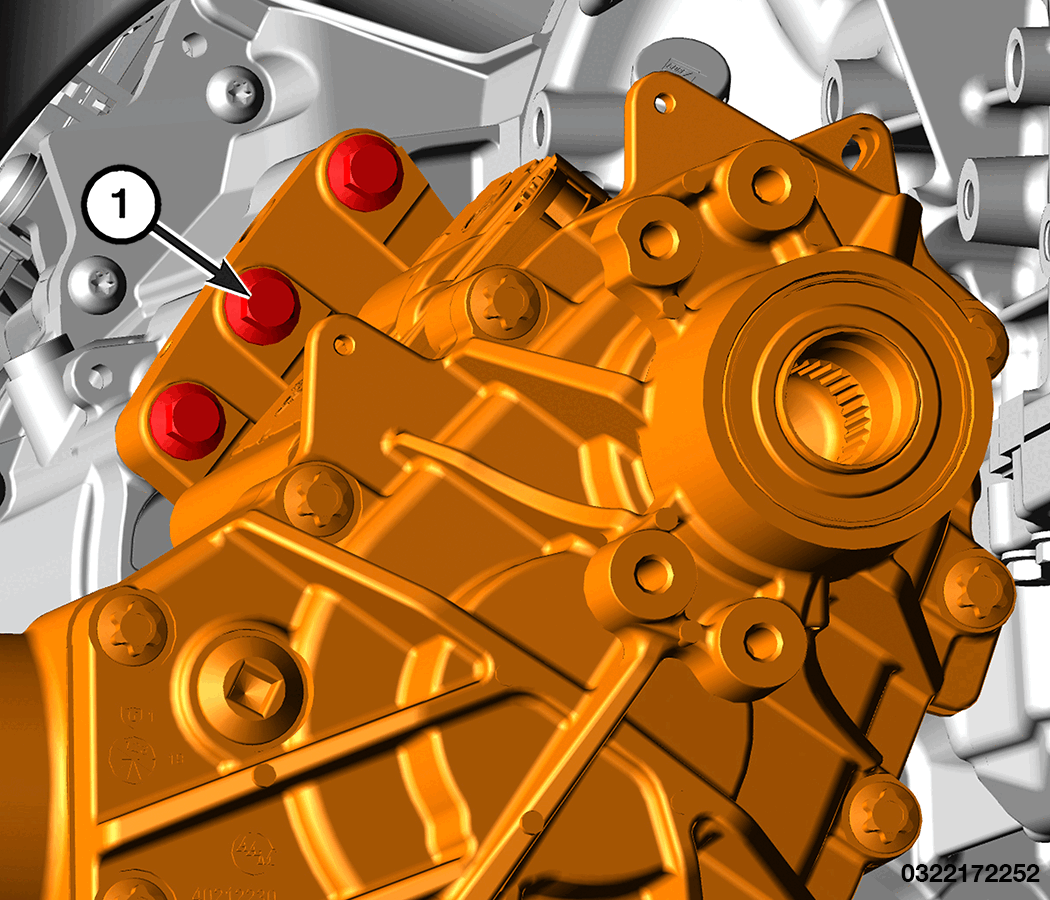

  2. Install the fasteners (1) retaining the PTU. Tighten to proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0200246Courtesy of CHRYSLER GROUP, LLC
  3. Install the fasteners (1) retaining the PTU. Tighten to proper torque specification. Refer to TORQUE SPECIFICATIONS .

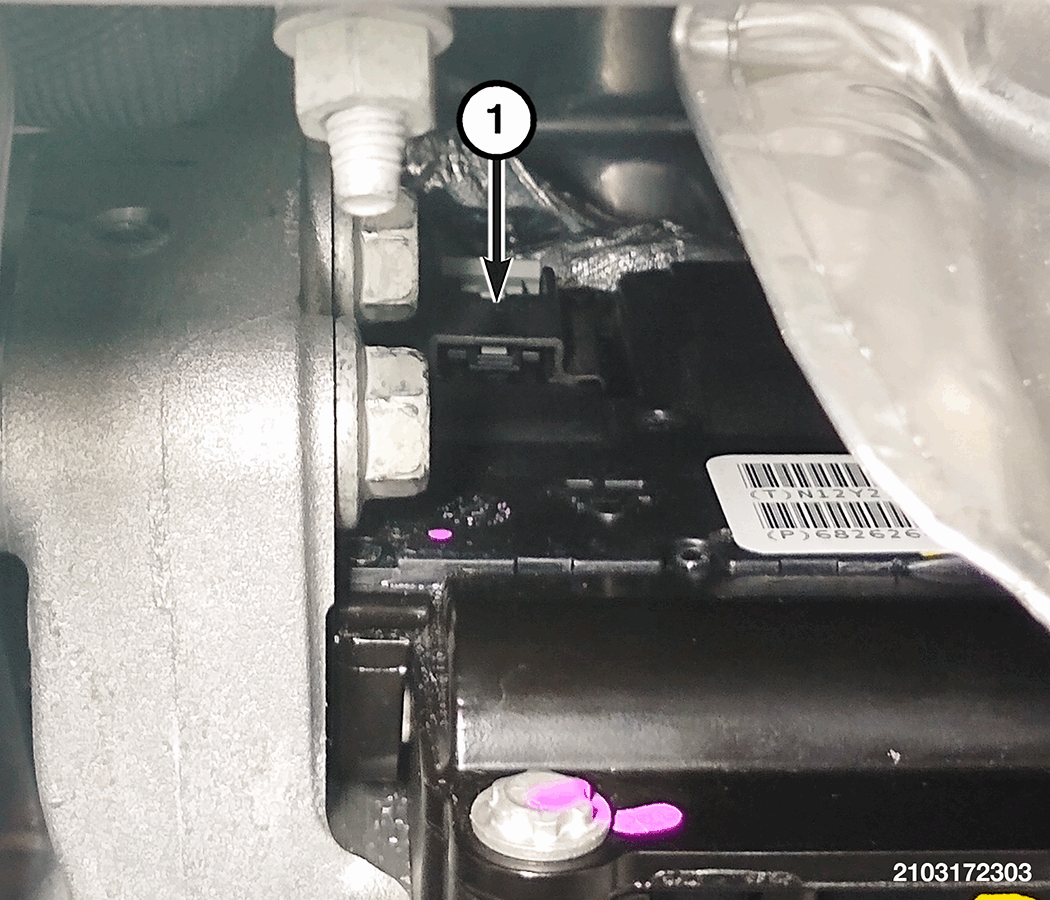

    GC0200337Courtesy of CHRYSLER GROUP, LLC
  4. Connect the PTU actuator wire harness connector (1).

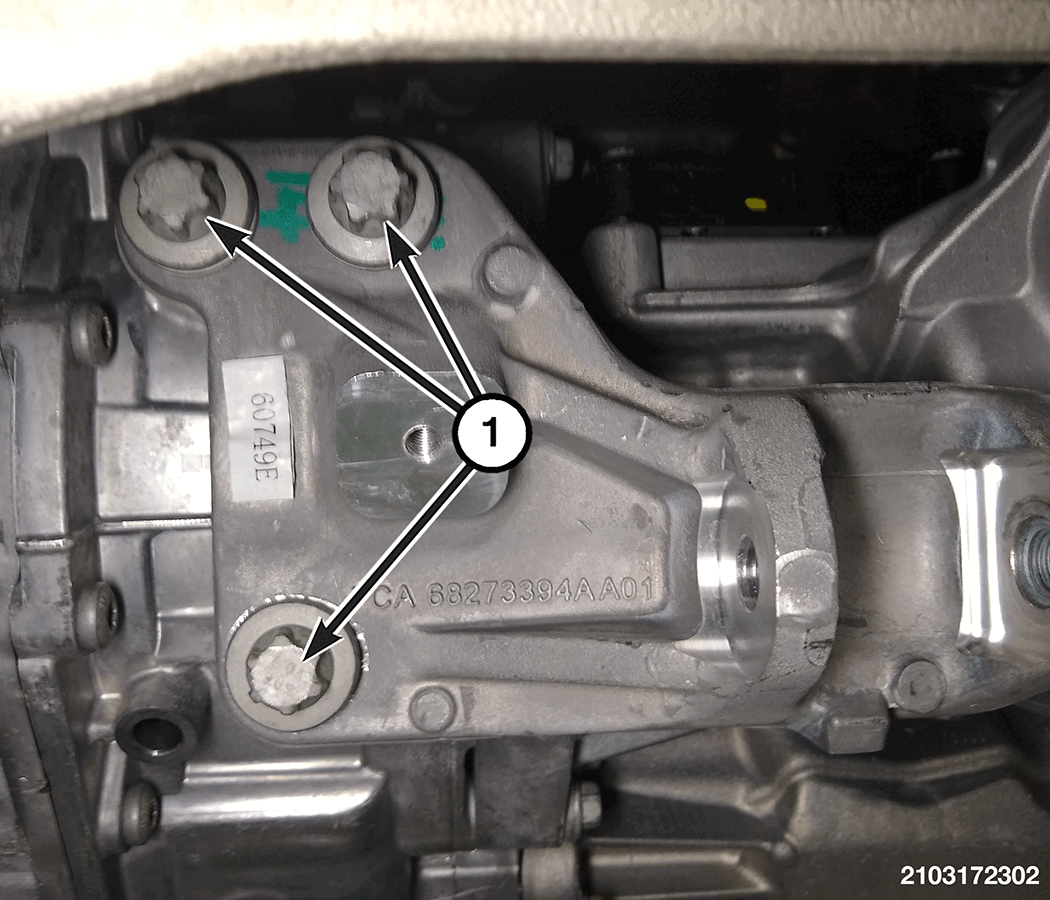

    GC0200301Courtesy of CHRYSLER GROUP, LLC
  5. Place the rear torque strut bracket and install the fasteners (1). Tighten to proper torque specification. Refer to TORQUE SPECIFICATIONS .

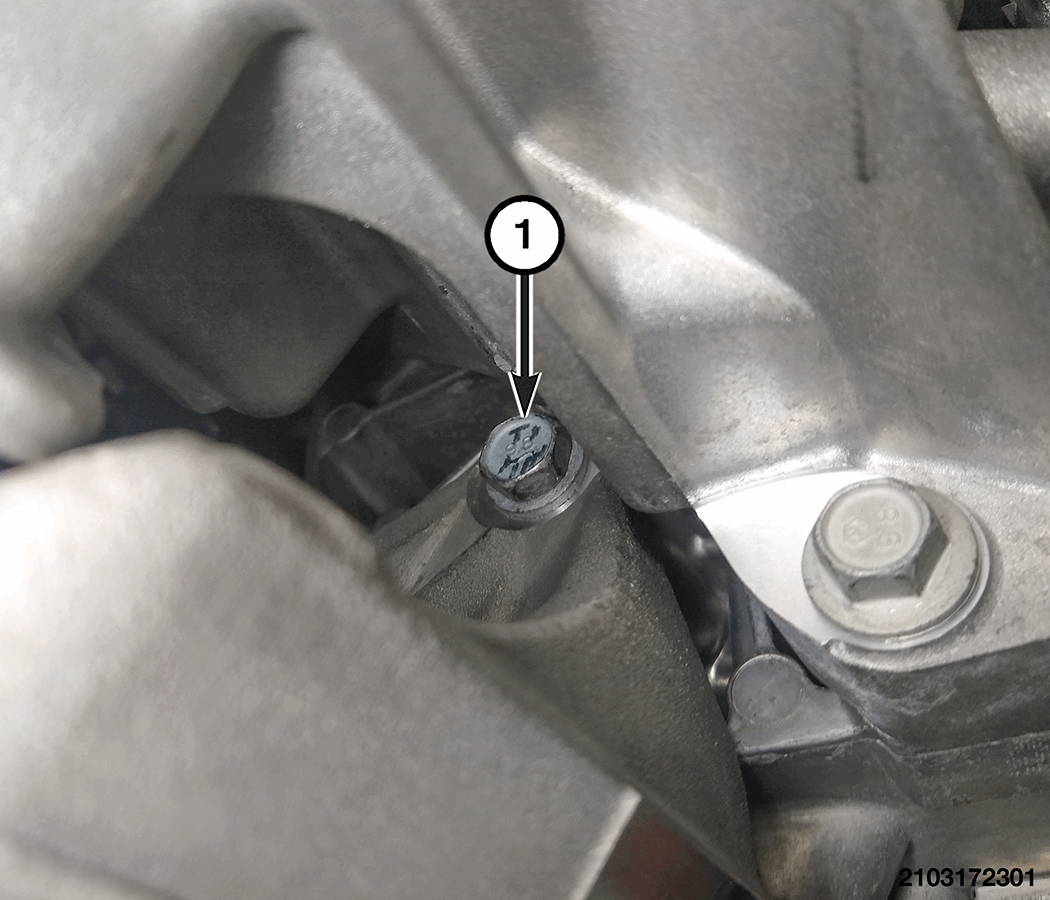

    GC0200342Courtesy of CHRYSLER GROUP, LLC
  6. Install the rear torque strut bracket fastener (1). Tighten to proper torque specification. Refer to TORQUE SPECIFICATIONS .
  7. Install the rear engine mount isolator. Refer to INSULATOR, ENGINE MOUNT, REAR, REMOVAL AND INSTALLATION .

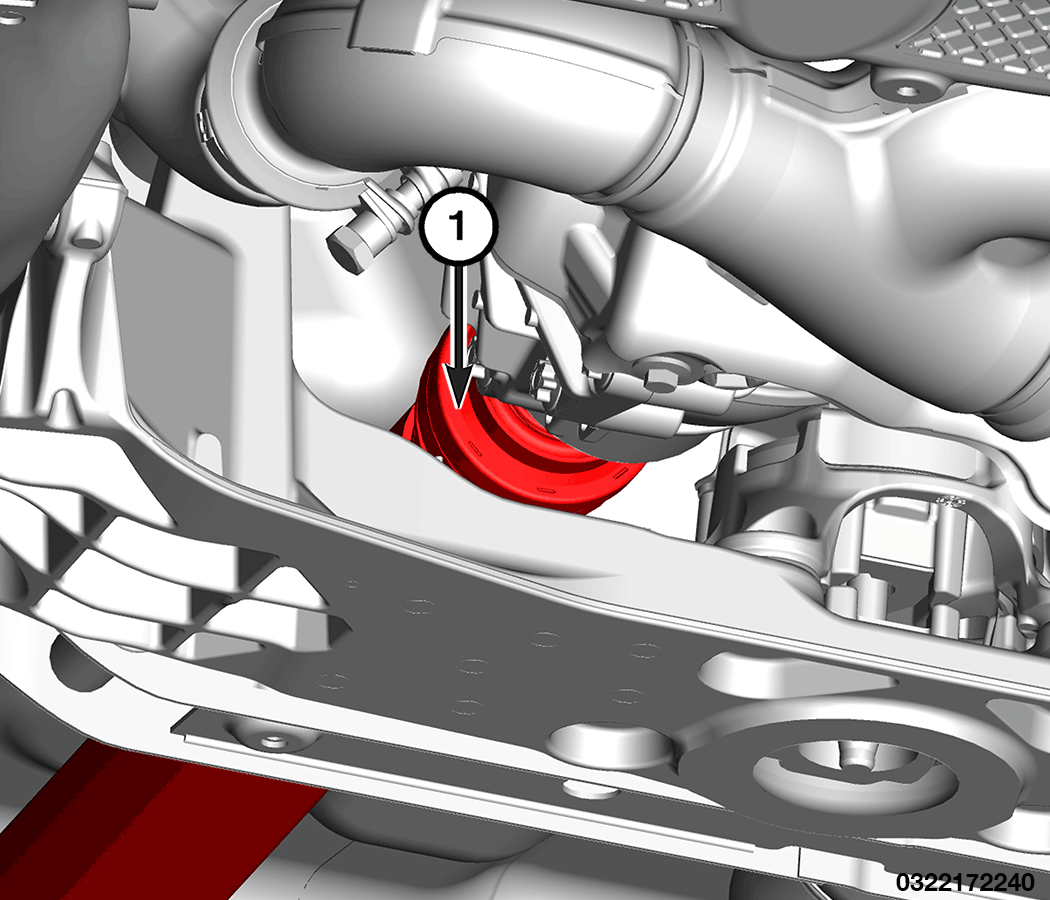

  8. Install a NEW  retention ring on the output shaft of the PTU. Lightly grease the splines of the output shaft.
    GC0200351Courtesy of CHRYSLER GROUP, LLC
  9. Install the driveshaft (1) to the PTU.
  10. Remove the support stand and lower the drivetrain in position.
    GC0200250Courtesy of CHRYSLER GROUP, LLC

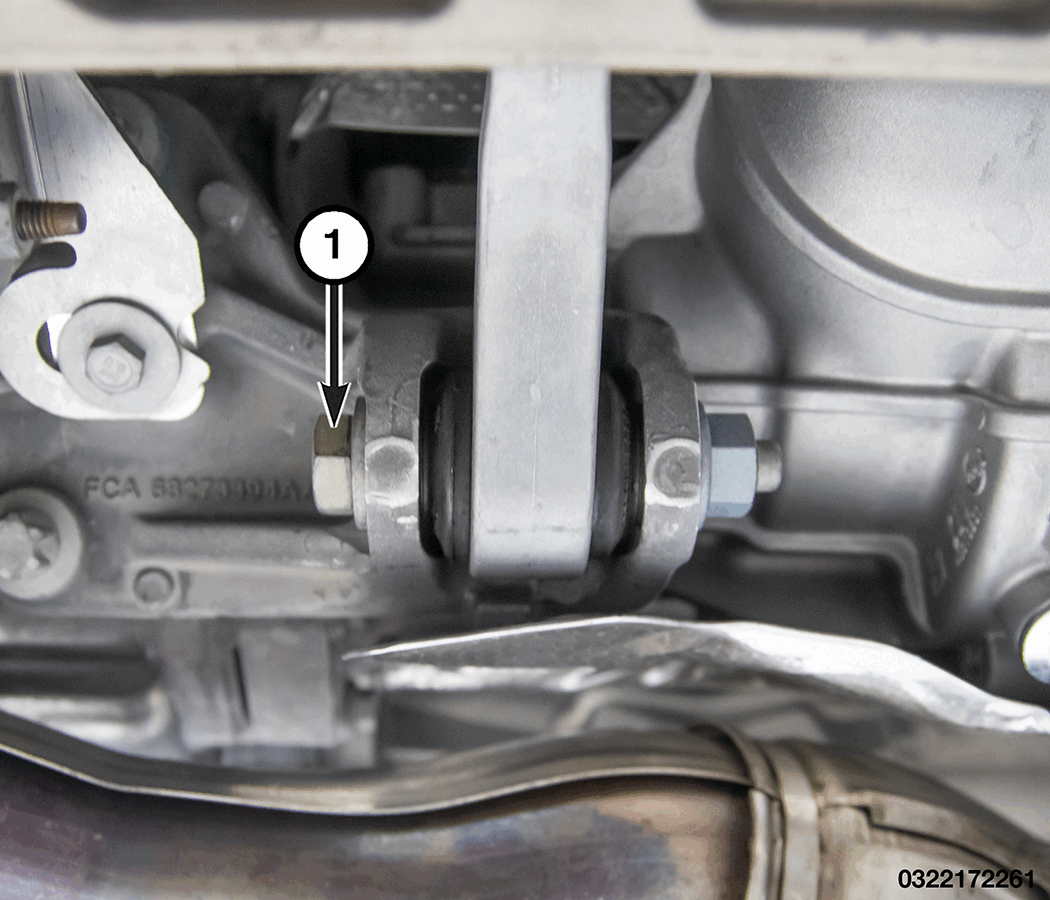

  11. Install the rear torque strut fastener (1) at the transmission. Tighten to proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0200289Courtesy of CHRYSLER GROUP, LLC

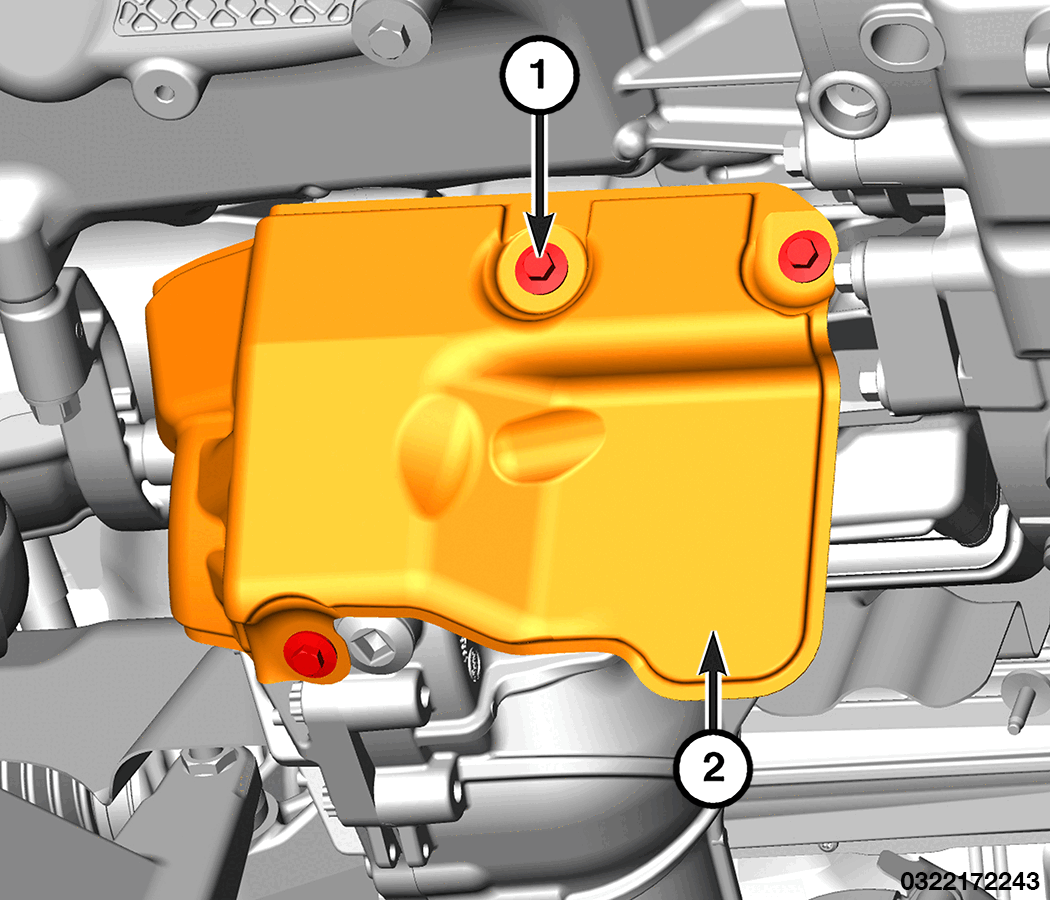

  12. Place the PTU lower heatshield into position and install the fasteners (1). Tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

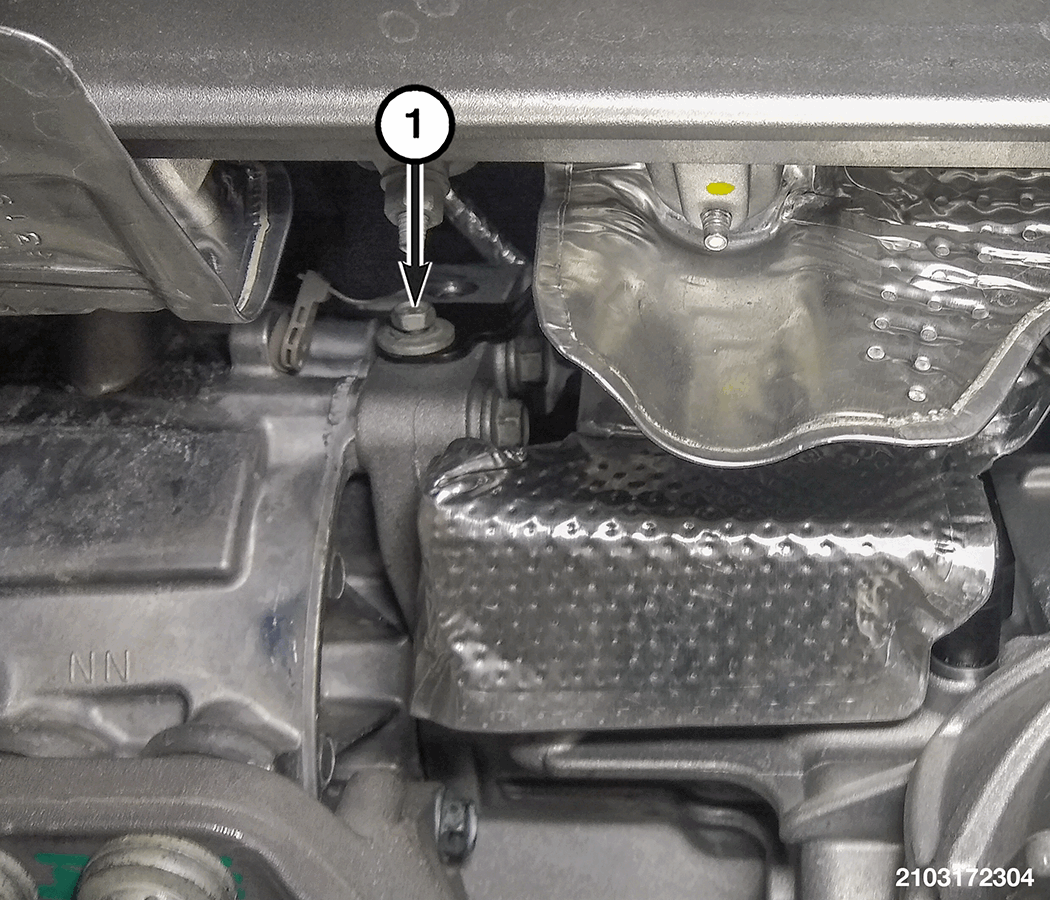

    GC0200274Courtesy of CHRYSLER GROUP, LLC
  13. Place the PTU upper heatshield into position and install the fasteners (1). Tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0200256Courtesy of CHRYSLER GROUP, LLC
  14. Install the fasteners (1). Tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  15. Install the right catalytic converter. Refer to CONVERTER, CATALYTIC, REMOVAL AND INSTALLATION .
  16. Install the exhaust crossunder pipe. Refer to PIPE, EXHAUST CROSSUNDER, REMOVAL AND INSTALLATION .

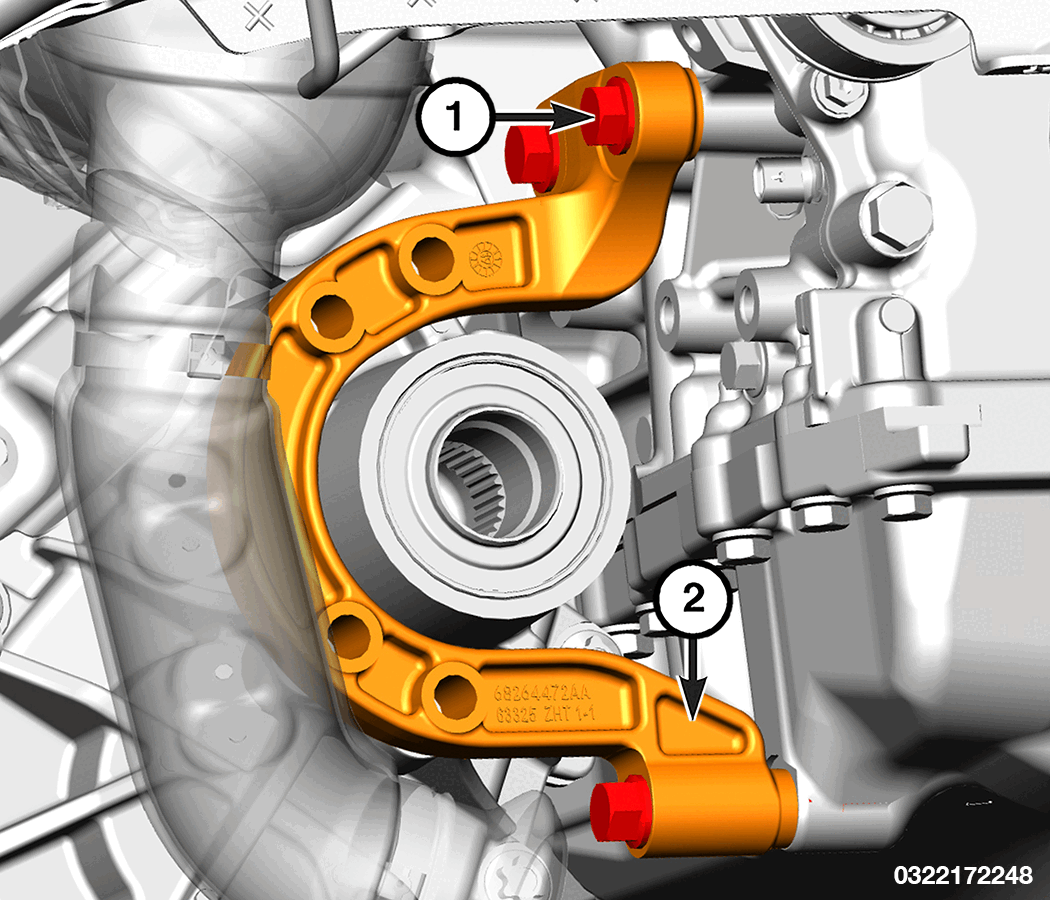

    GC0200268Courtesy of CHRYSLER GROUP, LLC

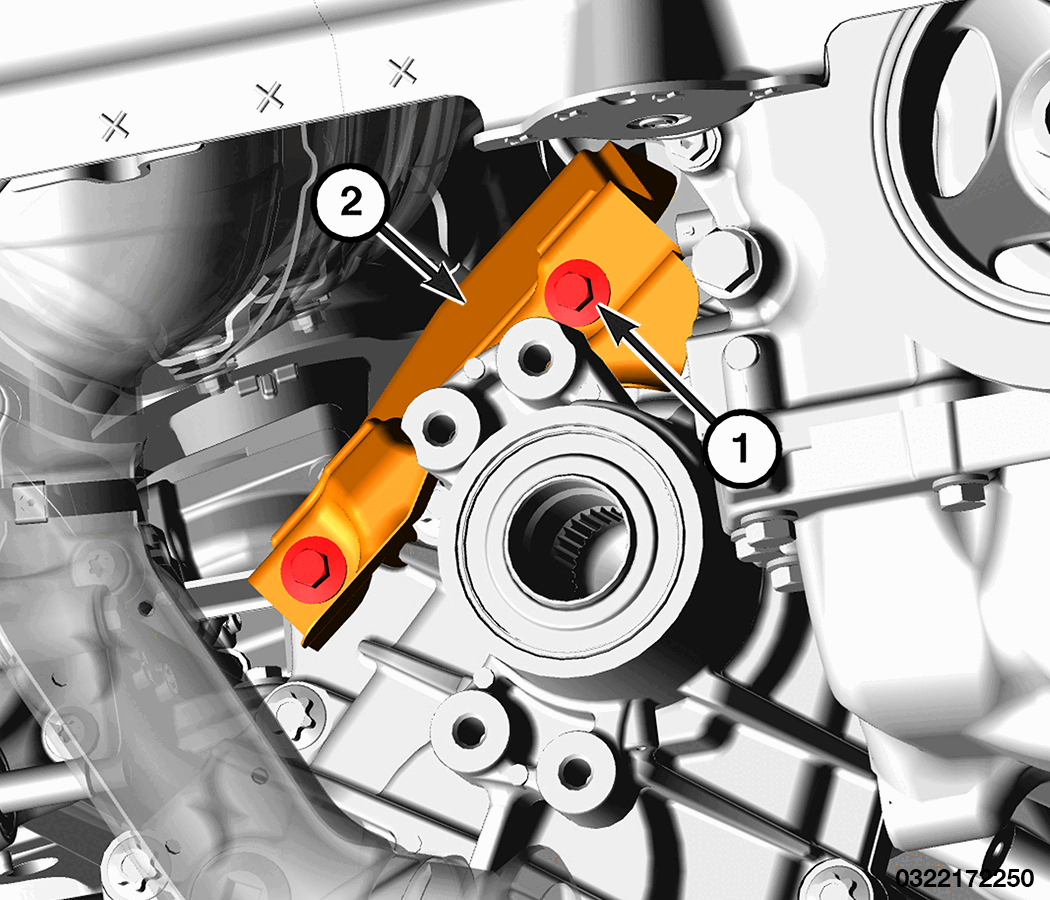

  17. Place the PTU bracket (2) to the engine, install the fasteners (1). Tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

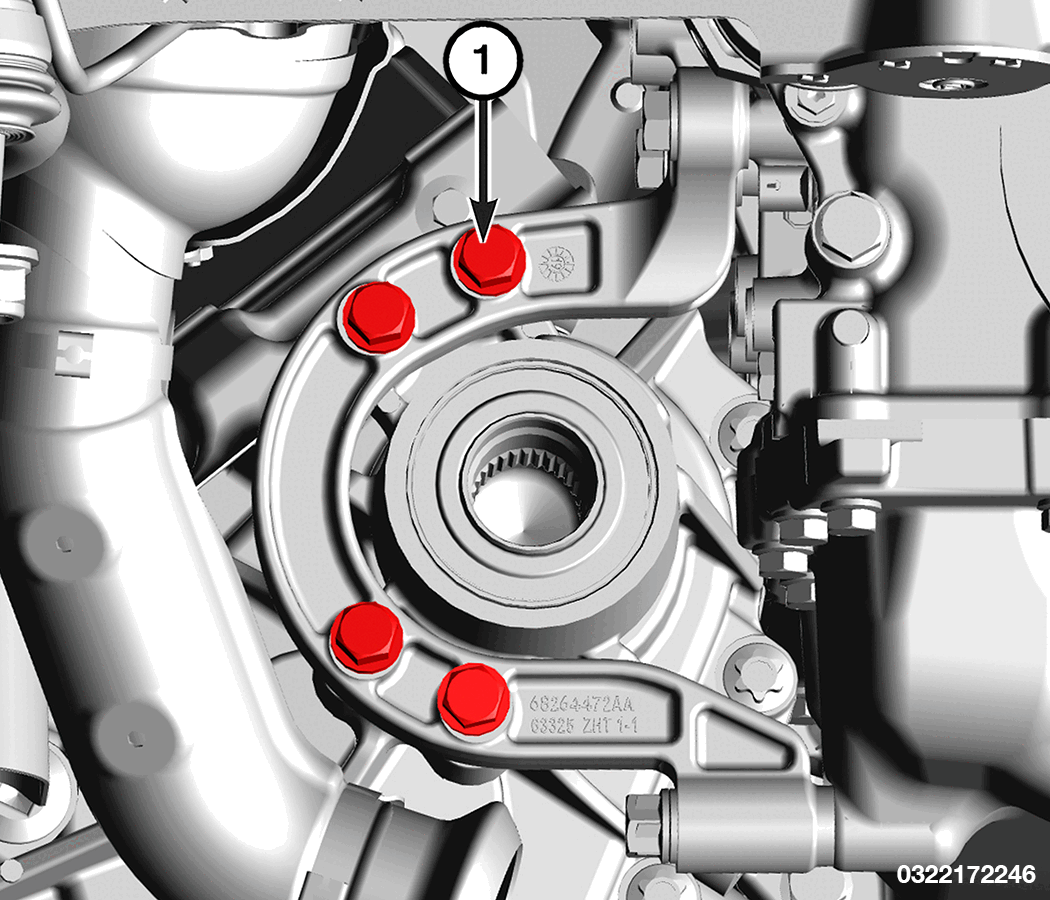

    GC0200298Courtesy of CHRYSLER GROUP, LLC
  18. Install the fasteners (1). Tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  19. Install the right side front halfshaft. Refer to REMOVAL AND INSTALLATION .
  20. Install the engine belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION .
  21. Remove the support and lower the vehicle.
  22. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
