Removal And Installation: Removal
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Loosen front fascia as necessary on the side to be removed. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .

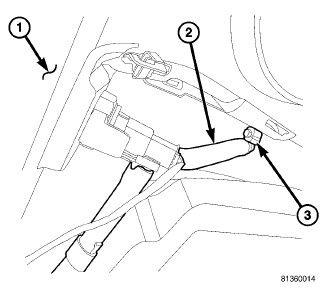

- Disconnect washer hose (2) from headlamp washer.
- Remove headlamp washer from front fascia (1).
