Removal And Installation: Removal

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Disable the airbag system before attempting any front seat diagnosis or service. Disconnect and isolate the negative battery (ground) cable and wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

Position the seat being serviced all the way forward.
Remove the outboard seat cushion side trim panel from the seat. Refer to SIDE SHIELDS, SEAT CUSHION, FRONT, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

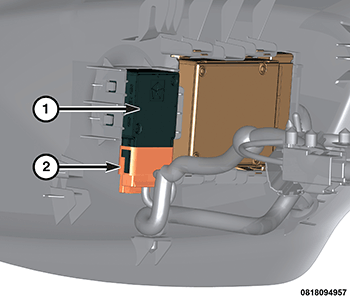

Disconnect the electric connector (2) from the lumbar control switch (1).

Courtesy of CHRYSLER GROUP, LLC

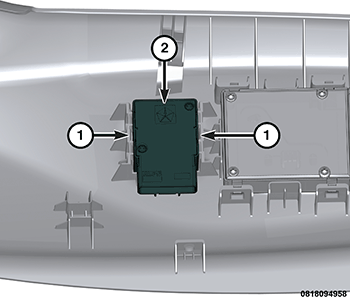

Using Trim Stick special tool (#C-4755, Trim Stick) or equivalent, carefully disengage the two tabs (1) that secure the lumbar control switch (2) to the seat cushion side trim panel.
