Description And Operation: Description
LATCH

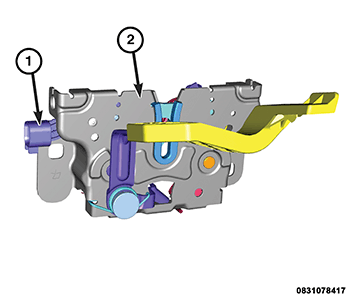

The hood ajar switch (1) is a single pole, spring-loaded plunger actuated switch that is integral to the hood latch mechanism (2). When the hood is closed and properly latched, the latch mounted hood ajar switch is an open circuit. The hood latch mechanism is located on the upper radiator cross member, just forward of the cooling module in the engine compartment. The hood ajar switch is a feature of the Vehicle Theft Alarm (VTA) system. The molded plastic switch body has an integral molded connector on one end containing two terminal pins. The switch is connected to the vehicle electrical system through a dedicated take out and connector of the headlamp and dash wire harness.
The hood ajar switch cannot be adjusted or repaired. If damaged or ineffective, the entire hood latch and hood ajar switch unit must be replaced.
