Description And Operation: Description
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

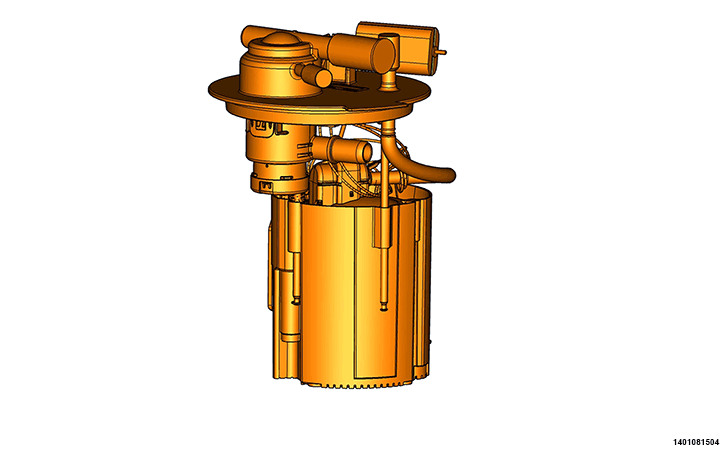

The fuel pump module is mounted on the top of the fuel tank and contains the following components:
- Mounting flange
- Electric fuel pump
- Fuel pump reservoir
- Inlet strainer
- Fuel pressure regulator
- Fuel level sending unit
- Fuel filter
If the electric fuel pump, fuel pressure regulator, fuel level sending unit or fuel filter requires service, the fuel pump module must be replaced as an assembly.
