Removal And Installation: Installation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

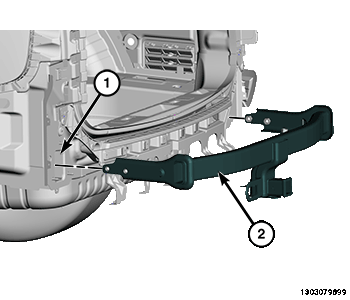

- Install the hitch assembly (2) onto the frame rails (1).

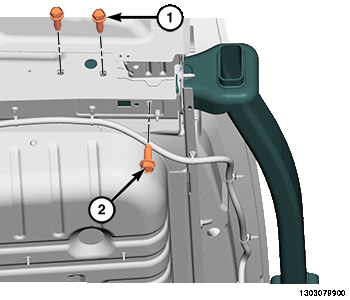

- Install the lower bolts (2) and the side bolts (1).
- Tighten the side bolts (1) and the lower bolts (2) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Install the rear fascia. Refer to FASCIA, REAR, REMOVAL AND INSTALLATION .
