Removal And Installation: Installation

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

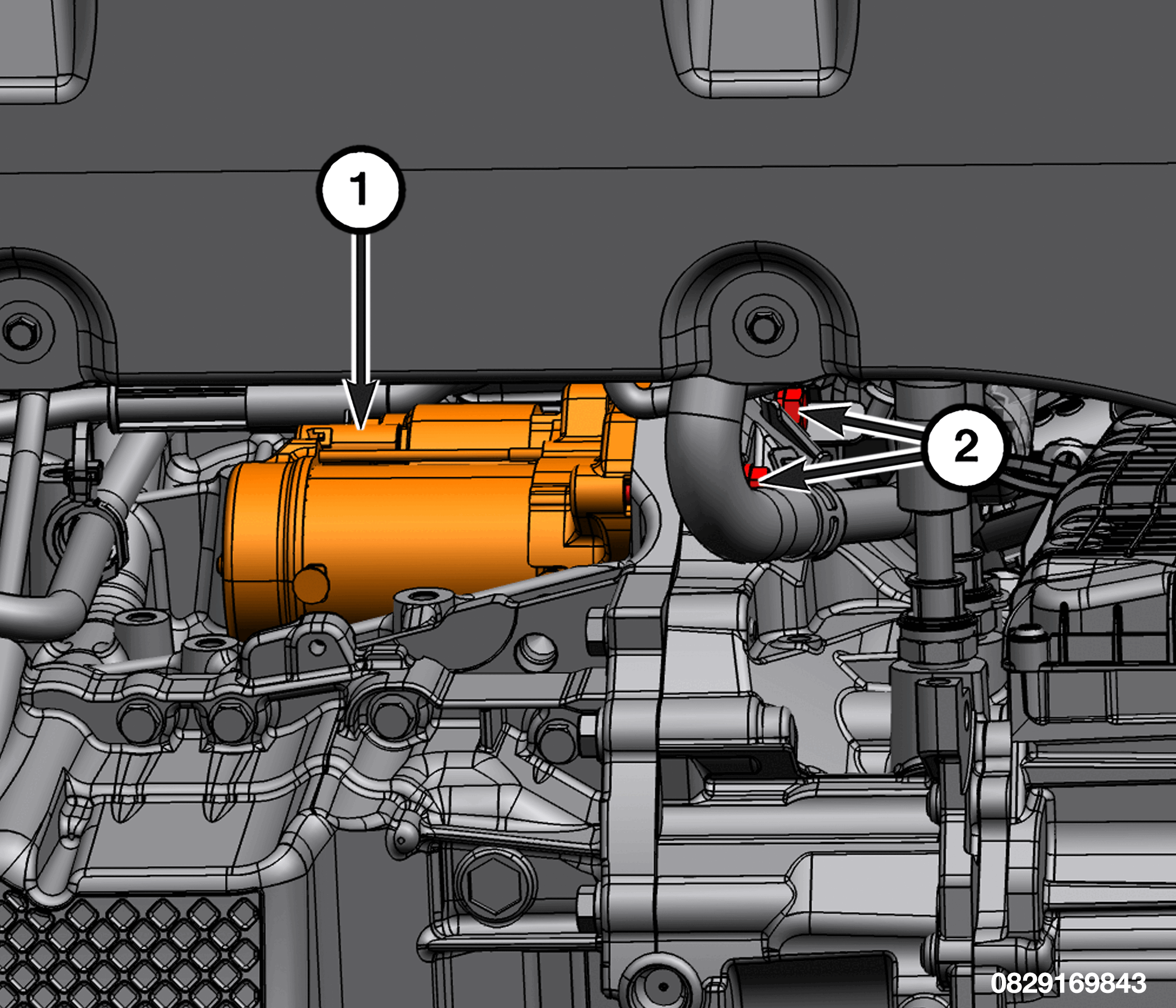

GC0200247Courtesy of CHRYSLER GROUP, LLC
  1. Position the starter motor (1), Install and tighten the mounting bolts (2) to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .

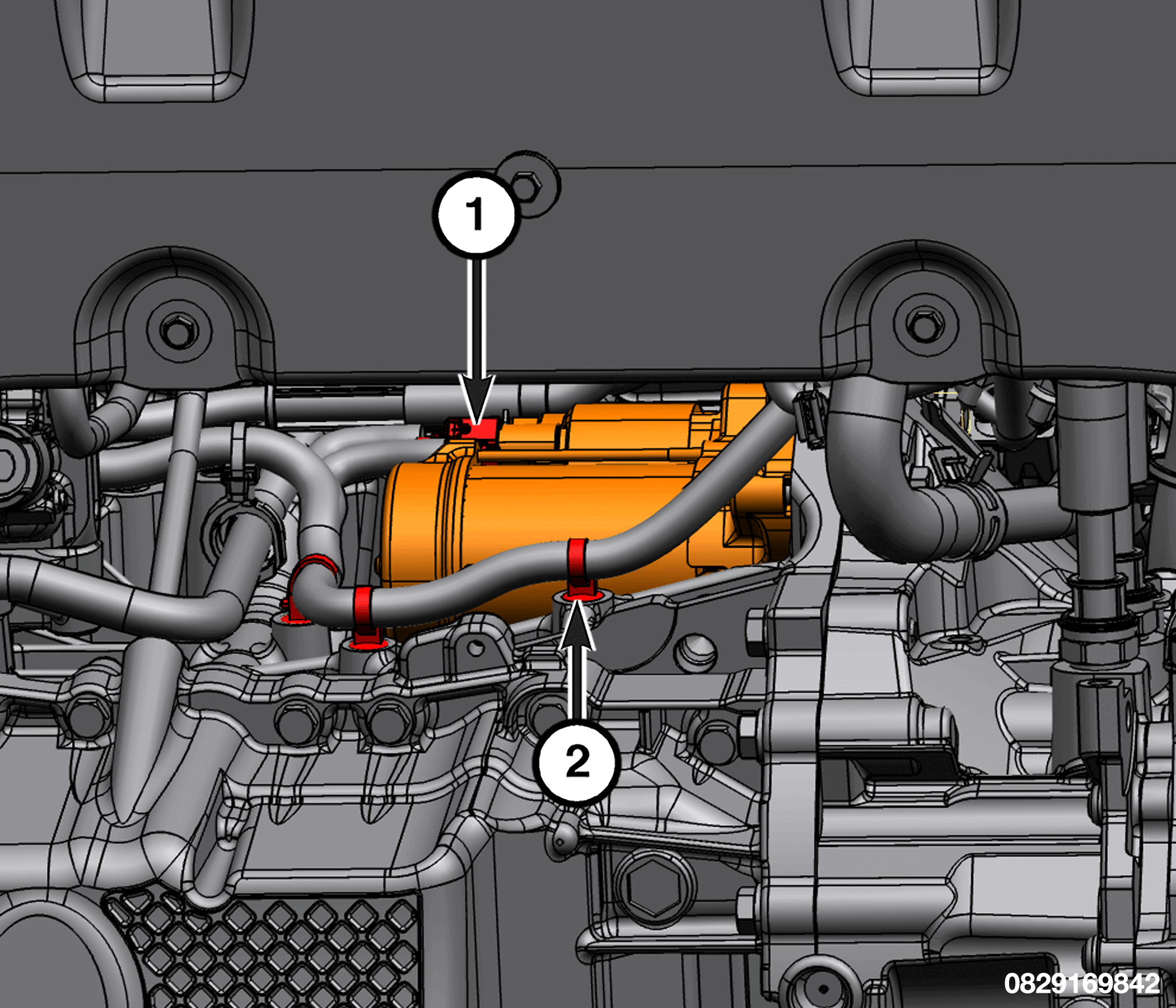

    GC0200264Courtesy of CHRYSLER GROUP, LLC
  2. Install the battery cable and secure the clips (2), install the B+ nut and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  3. Connect the starter electrical connector (1).
  4. Install the Y-pipe. Refer to PIPE, EXHAUST CROSSUNDER, REMOVAL AND INSTALLATION .
  5. Install the front catalytic converter. Refer to CONVERTER, CATALYTIC, REMOVAL AND INSTALLATION .
  6. Connect the negative battery cable.
