Removal And Installation: Removal

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the air cleaner assembly. Refer to AIR CLEANER, REMOVAL AND INSTALLATION .
  3. Remove the Power Control Relay (PCR) cover.

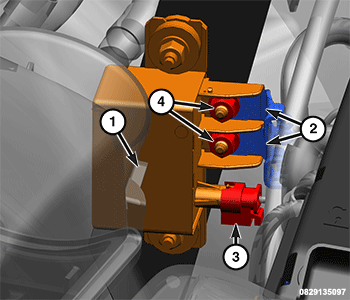

    GC0178331Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the wire harness connector (3) from the PCR (1).
  5. Remove two nuts (4) and remove the B+ eyelet terminals (2) from the PCR.

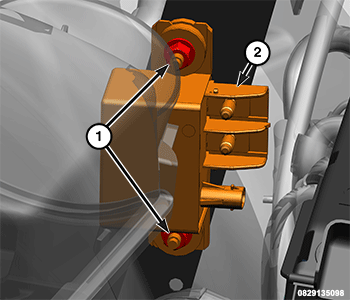

    GC0178306Courtesy of CHRYSLER GROUP, LLC
  6. Remove the two nuts (1) securing the PCR (2) to the PCR bracket to remove it from the vehicle.
