Removal And Installation: Installation

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

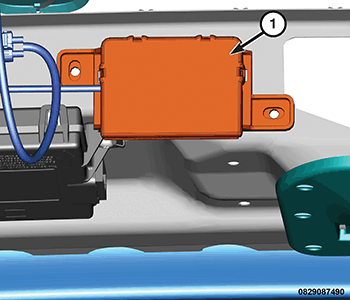

GC0177565Courtesy of CHRYSLER GROUP, LLC
  1. Position the remote start antenna (1) to the vehicle for installation.

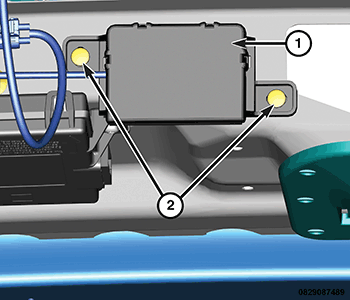

    GC0178205Courtesy of CHRYSLER GROUP, LLC
  2. Using fasteners (2), secure the remote start antenna (1) to the vehicle.
  3. Connect the remote start antenna to the Radio Frequency Hub (RFH).
  4. Install the headliner. Refer to HEADLINER, REMOVAL AND INSTALLATION .
  5. Connect the negative battery cable.
