Description And Operation: Description
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

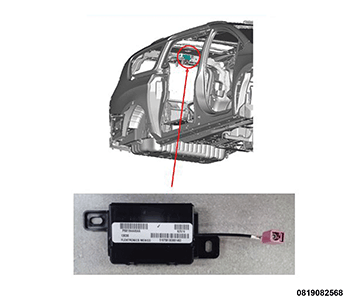

The Remote Start Antenna (RSA) is mounted near the center of the roof panel at the rear of the vehicle. The RSA consists of a short coaxial cable connects the RSA directly to the Radio Frequency Hub Module (RFHM), two mounting clips, and the control antenna module.
The RSA captures radiated Radio Frequency (RF) signals that are transmitted from the Key FOB transmitter throughout the intended broadcast bands. The RF signal captured is then amplified and sent to the desired receiver/tuner.
