Removal And Installation: Installation

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Seat the liftgate switch into the D-pillar until all of the switch retaining clips are engaged.

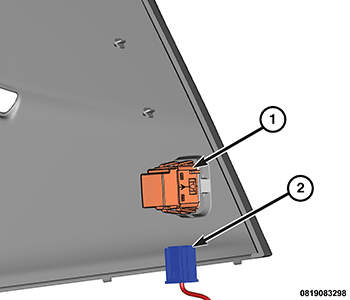

    GC0178028Courtesy of CHRYSLER GROUP, LLC
  2. Connect the wiring harness connector (2) to the liftgate switch (1).
  3. Install the left D-pillar. Refer to PANEL, D-PILLAR TRIM, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable.
