Removal And Installation: Installation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

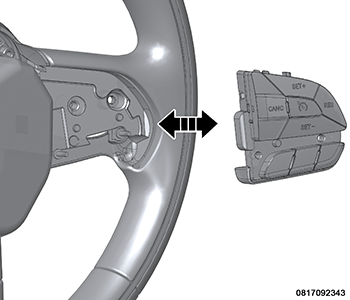

- Connect the wiring harness to the speed control switch and seat the switch to the steering wheel.

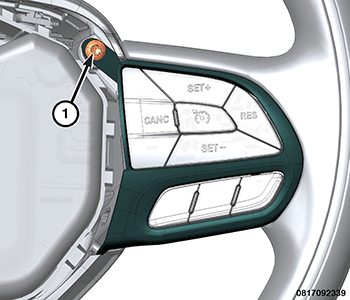

- Install and tighten the forward screw (1).

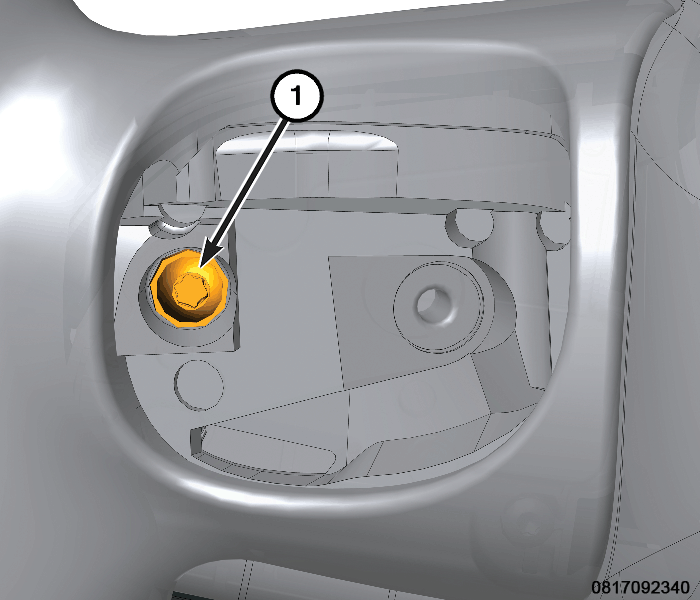

- Install and tighten the back speed control switch screw (1).

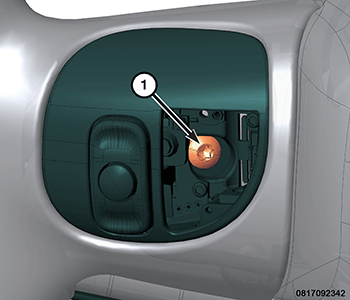

- Install the remote radio switch bezel and securely tighten the retaining screw (1).

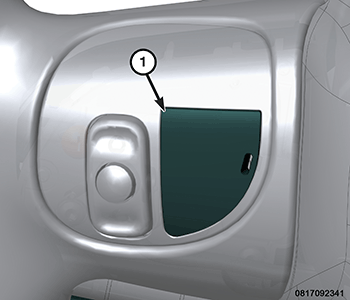

- Install the remote radio switch with paddle shift unit cover (1).
- Install the driver air bag. Refer to AIR BAG, DRIVER, REMOVAL AND INSTALLATION .
