Description And Operation: Description
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

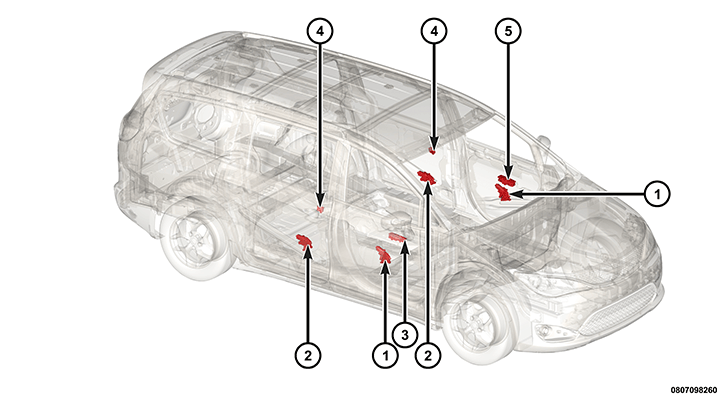

The power window system allows each of the door windows to be raised and lowered electrically by actuating a switch on each door panel. A master switch (5) on the drivers door switch bank allows the driver to raise or lower each of the passenger door windows and to lock out the individual switches on the passenger doors from operation. The power window system receives battery feed through a fuse in the Power Distribution Center (PDC) to the door modules.
The power window system includes the power window switches (3, 4, 5), the circuit breaker, and the power window motors (1, 2) and regulators inside each door. The power motors are similar in design and can only be serviced with the window regulators.
