Description And Operation: Description
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

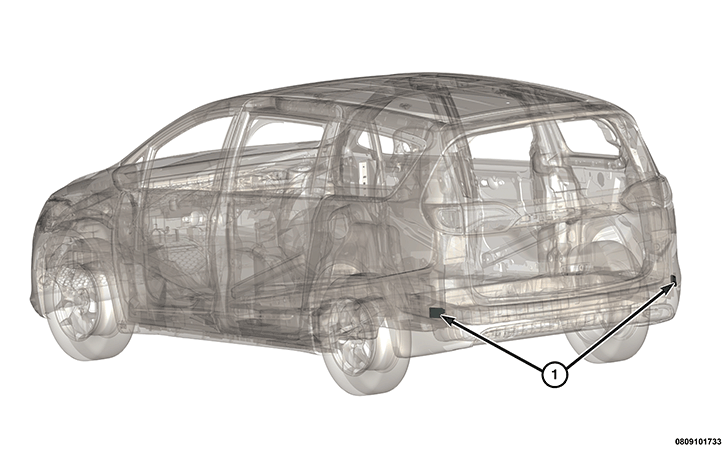

Vehicles equipped with the Blind Spot Monitor (BSM) system have two Blind Spot Sensors (BSS) that are concealed behind the rear bumper fascia. Each sensor is loaded into a bracket on the back side of the rear bumper fascia directly below the left and right tail lamps (1). Each sensor performs both radar-based sensing and information processing.
The blind spot monitor system components cannot be adjusted or repaired. If any of the BSM system components are damaged or inoperative, that component must be replaced. For more information on the blind spot monitor system and its components. Refer to DESCRIPTION AND OPERATION .
